Product Summary
The ADG619BRTZ is a monolithic, CMOS SPDT (single pole, double throw) switch. Each switch conducts equally well in both directions when on. The ADG619BRTZ offers low On-Resistance of 4 Ω, which is matched to within 0.7 Ω between channels. The switch also provides low power dissipation yet give high switching speeds. The ADG619BRTZ exhibits break-before-make switching action, thus preventing momentary shorting when switching channels. The applications of the ADG619BRTZ include Automatic Test Equipment, Power Routing, Communication Systems, Data Acquisition Systems, Sample and Hold Systems, Avionics, Relay Replacement, Battery-Powered Systems.
Parametrics
ADG619BRTZ absolute maximum ratings: (1)VDD to VSS: 13 V; (2)VDD to GND: -0.3 V to +6.5 V; (3)VSS to GND: +0.3 V to -6.5 V; (4)Analog Inputs: VSS -0.3 V to VDD +0.3 V; (5)Digital Inputs: -0.3 V to VDD +0.3 V or 30 mA, Whichever Occurs First; (6)Peak Current, S or D: 100 mA (Pulsed at 1 ms, 10% Duty Cycle max); (7)Continuous Current, S or D: 50 mA; (8)Operating Temperature Range, Industrial (B Version): -40℃ to +85℃; (9)Storage Temperature Range: -65℃ to +150℃; (10)Junction Temperature: 150℃; (11)Micro-SOIC Package, θJA Thermal Impedance: 206℃/W; (12)θJC Thermal Impedance: 44℃/W; (13)SOT-23 Package, θJA Thermal Impedance: 229.6℃/W; (14)θJC Thermal Impedance: 91.99℃/W; (15)Lead Temperature, Soldering (10 seconds): 300℃; (16)IR Reflow, Peak Temperature: 220℃.
Features
ADG619BRTZ features: (1)6 Ω (Max) On Resistance; (2)0.8 Ω (Max) On-Resistance Flatness; (3)2.7 V to 5.5 V Single Supply; (4)±2.7 V to 5.5 V Dual Supply; (5)Rail-to-Rail Operation; (6)8-Lead SOT-23 Package, 8-Lead Micro-SOIC Package; (7)Typical Power Consumption (<0.1 W); (8)TTL/CMOS Compatible Inputs.

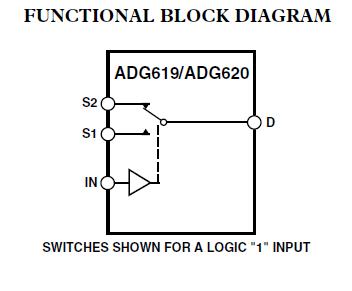

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADG619BRTZ-500RL7 |
|
IC SWITCH SPDT SOT23-8 |
Data Sheet |
|
|
||||||||||||||||||
|
ADG619BRTZ-REEL |
|
IC SWITCH SPDT SOT23-8 |
Data Sheet |
|
|
||||||||||||||||||
|
ADG619BRTZ-REEL7 |
|
IC SWITCH SPDT SOT23-8 |
Data Sheet |
|
|
||||||||||||||||||
