ADG2128BCPZ

ADG2128BCPZ, CMOS 8 × 12 Unbuffered Analog Switch Array, 15V, 30 mA, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $7.28~7.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	7.90 / Piece
11 ~ 100 :	7.59 / Piece
101 ~ 3000 :	7.28 / Piece

PartNumber:: ADG2128BCPZ

Brand:: Analog Devices - ADI | Pack: | D/C: 06+

Availability:: Supply Ability: 2/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Anne's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-28

From Other Seller

Part Number:ADG2128BCPZ
US $7.28 - 7.90
Quantity:

piece

Product Summary

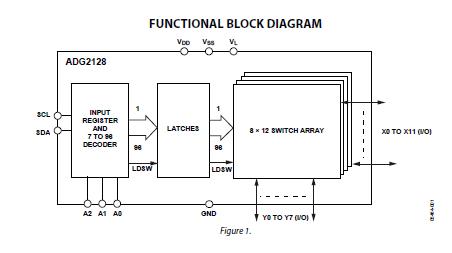

The ADG2128BCPZ is an analog cross point switch with an array size of 8 × 12. The switch array is arranged so that there are eight columns by 12 rows, for a total of 96 switch channels. The array is bidirectional, and the rows and columns can be configured as either inputs or outputs. Each of the 96 switches can be addressed and configured through the I2C-compatible interface. Standard, full speed, and high speed (3.4 MHz) I2C interfaces are supported. Any simultaneous switch combination is allowed. An additional feature of the ADG2128BCPZ is that switches can be updated simultaneously, using the LDSW command. The applications of the ADG2128BCPZ include AV switching in TV, Automotive infotainment, AV receivers, CCTV, Ultrasound applications, KVM switching, Telecom applications, Test equipment/instrumentation, PBX systems.

Parametrics

ADG2128BCPZ absolute maximum ratings: (1)VDD to VSS: 15 V; (2)VDD to GND: -0.3 V to +15 V; (3)VSS to GND: +0.3 V to -7 V; (4)VL to GND: -0.3 V to +7 V; (5)Analog Inputs: VSS -0.3 V to VDD + 0.3 V; (6)Digital Inputs: -0.3 V to VL + 0.3 V or 30 mA, whichever occurs first; (7)Operating Temperature Range, Industrial (B Version): -40℃ to +85℃; (8)Automotive (Y Version): -40℃ to +125℃; (9)Storage Temperature Range: -65℃ to +150℃; (10)Junction Temperature: 150℃; (11)32-Lead LFCSP_VQ, θJA Thermal Impedance: 108.2℃/W.

Features

ADG2128BCPZ features: (1)I2C-compatible interface 3.4 MHz high speed I2C option; (2)32-lead LFCSP_VQ (5 mm × 5 mm); (3)Double-buffered input logic Simultaneous update of multiple switches; (4)Up to 300 MHz bandwidth; (5)Fully specified at dual ±5 V/single +12 V operation; (6)On resistance 35 Ω maximum; (7)Low quiescent current < 20 μA.
