Product Summary

The AD8343ARUZ is a high-performance broadband active mixer. Having wide bandwidth on all ports and very low intermodulation distortion, the AD8343ARUZ is well suited for demanding transmit or receive channel applications. The AD8343ARUZ provides a typical conversion gain of 7.1 dB. The integrated LO driver supports a 50 Ω differential input impedance with low LO drive level, helping to minimize external component count. The applications of the AD8343ARUZ include Cellular Base Stations, Wireless LAN, Satellite Converters, SONET/SDH Radio, Radio Links, RF Instrumentation.

Parametrics

AD8343ARUZ absolute maximum ratings: (1)VPOS Quiescent Voltage: 5.5 V; (2)OUTP, OUTM Quiescent Voltage: 5.5 V; (3)INPP, INPM Voltage Differential: 500 mV; (4)Internal Power Dissipation (TSSOP)2: 320 mW; (5)θJA (TSSOP): 125℃/W; (6)Maximum Junction Temperature: 125℃; (7)Operating Temperature Range: -40℃ to +85℃; (8)Storage Temperature Range: -65℃ to +150℃; (9)Lead Temperature Range (Soldering 60 sec): 300℃.

Features

AD8343ARUZ features: (1)High-Performance Active Mixer; (2)Broadband Operation to 2.5 GHz; (3)Conversion Gain: 7.1 dB; (4)Input IP3: 16.5 dBm; (5)LO Drive: –10 dBm; (6)Noise Figure: 14.1 dB; (7)Input P1 dB: 2.8 dBm; (8)Differential LO, IF and RF Ports; (9)50 Ω LO Input Impedance; (10)Single-Supply Operation: 5 V @ 50 mA Typical; (11)Power-Down Mode @ 20 μA Typical.

Diagrams

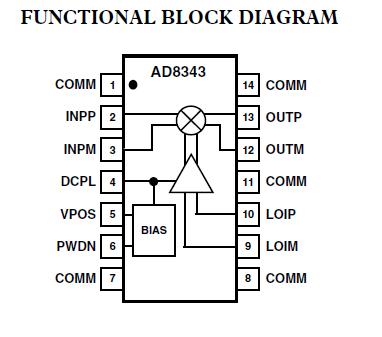

AD8343ARUZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD8343ARUZ
AD8343ARUZ

IC MIXER ACTIVE HI-IP3 14-TSSOP
Data Sheet
0-1: $5.18
1-10: $4.67
10-100: $3.84
100-250: $3.53
250-500: $3.21
500-1000: $2.80
1000-2500: $2.76
AD8343ARUZ-REEL
AD8343ARUZ-REEL

IC MIXER ACTIVE HIGH IP3 14TSSOP
Data Sheet
0-2500: $2.76
AD8343ARUZ-REEL7
AD8343ARUZ-REEL7

IC MIXER ACTIVE HIGH IP3 14TSSOP
Data Sheet
0-1000: $2.80
