Product Summary
The AD7946BCPZRL is a 14-bit, fast, low power, successive approxima-tion ADC. The part operates from a single 2.50 V to 5.5 V power supply and features throughput rates up to 100 kSPS. The part contains a low noise, wide bandwidth track-and-hold amplifier that can handle input frequencies in excess of 7 MHz. The conversion process and data acquisition are controlled using CS and the serial clock, allowing the devices to interface with microprocessors or DSPs. The applications of the AD7946BCPZRL include Battery-powered systems, Personal digital assistants, Medical instruments, Mobile communications, Instrumentation and control systems, Remote data acquisition systems.
Parametrics
AD7946BCPZRL absolute maximum ratings: (1)VDD to GND: -0.3 V to +7 V; (2)Analog Input Voltage to GND: -0.3 V to VDD + 0.3 V; (3)Digital Input Voltage to GND: -0.3 V to +7 V; (4)Digital Output Voltage to GND: -0.3 V to VDD + 0.3 V; (5)Input Current to Any Pin Except Supplies1: ±10 mA; (6)Operating Temperature Range, Commercial (B Version): -40℃ to +85℃; (7)Storage Temperature Range: -65℃ to +150℃; (8)Junction Temperature: 150℃; (9)SOT-23 Package, Power Dissipation: 450 mW; θJA Thermal Impedance: 229.6℃/W; θJC Thermal Impedance: 91.99℃/W; (10)MSOP Package, Power Dissipation: 450 mW, θJA Thermal Impedance: 205.9℃/W; θJC Thermal Impedance: 43.74℃/W; (11)Lead Temperature, Soldering, Vapor Phase (60 secs): 215℃; Infared (15 secs): 220℃; (12)ESD: 4 kV.
Features
AD7946BCPZRL features: (1)Fast throughput rate: 100 kSPS; (2)Specified for VDD of 2.5 V to 5.5 V; (3)Low power, 4 mW typ at 100 kSPS with 3 V supplies; 17 mW typ at 100 kSPS with 5 V supplies; (4)Wide input bandwidth: 81 dB SINAD at 10 kHz input frequency; (5)Flexible power/serial clock speed management; (6)No pipeline delays; (7)High speed serial interface, SPI/QSPI/MICROWIRE/DSP compatible; (8)Standby mode: 0.5μA max; (9)6-Lead SOT-23 and 8-Lead MSOP packages.

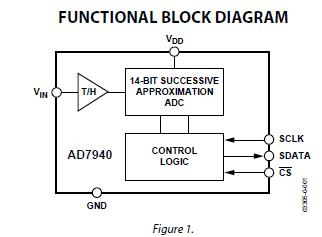

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

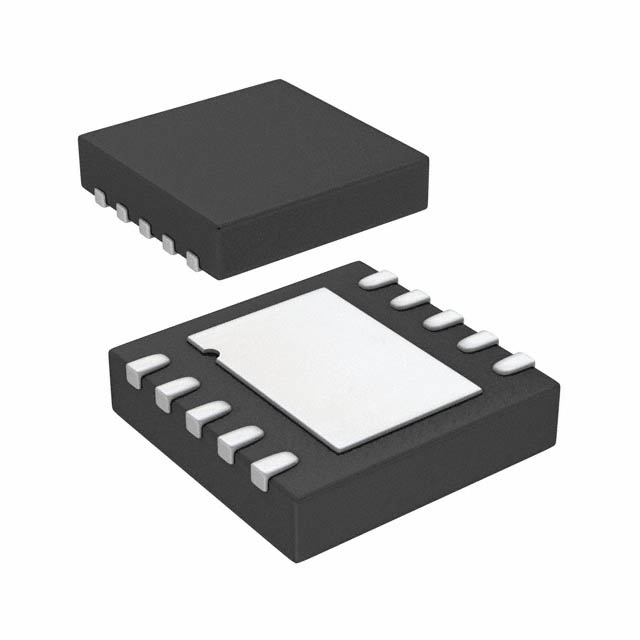

 AD7946BCPZRL |
|
IC ADC 14BIT 500KSPS 10-LFCSP |
Data Sheet |
|
|
||||||
|
AD7946BCPZRL7 |
|
IC ADC 14BIT 500KSPS 10-LFCSP |
Data Sheet |
Negotiable |
|
||||||
