Product Summary

The A3948SLBTR is a DMOS full-bridge pwm motor driver designed for pulse-width modulated (PWM) current control of dc motors, the A3948SLBTR is capable of continuous output currents to ±1.5 A and operating voltages to 50 V. Internal fixed offtime PWM current-control timing circuitry can be programmed via a serial interface to operate in slow, fast, and mixed current-decay modes. Similar devices with outputs rated to ±2 A are available as the A3958SB/SLB.

Parametrics

A3948SLBTR absolute maximum ratings: (1)Load Supply Voltage, VBB: 50 V; (2)Output Current, IOUT: ±1.5 A; (3)Logic Supply Voltage, VDD: 7.0 V; (4)Input Voltage, VIN: -0.3 V to VDD + 0.3 V; (5)Sense Voltage, VS: 0.55 V; (6)Reference Voltage, VREF: 5.5 V; (7)Package Power Dissipation (TA = 25℃), PD: 1.6 W; (8)Operating Temperature Range, TA: -20℃ to +85℃; (9)Junction Temperature, TJ: +150℃; (10)Storage Temperature Range, TS: -55℃ to +150℃.

Features

A3948SLBTR features: (1)±1.5 A, 50 V Continuous Output Rating; (2)Low rDS(on) Outputs; (3)Programmable Mixed, Fast, and Slow Current-Decay Modes; (4)Serial Interface Controls Chip Functions; (5)Synchronous Rectification for Low Power Dissipation; (6)Internal UVLO and Thermal-Shutdown Circuitry; (7)Crossover-Current Protection.

Diagrams

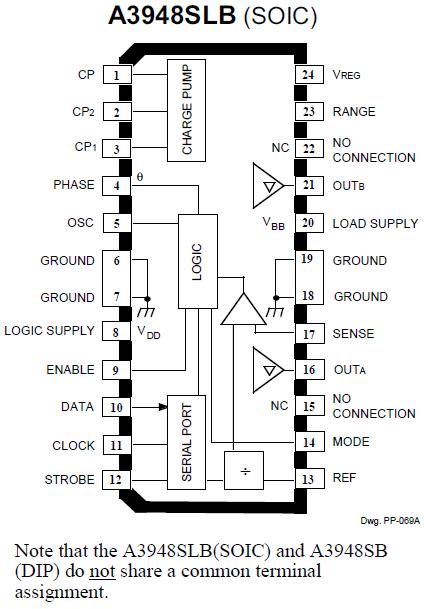

A3948SLBTR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
A3948SLBTR
A3948SLBTR

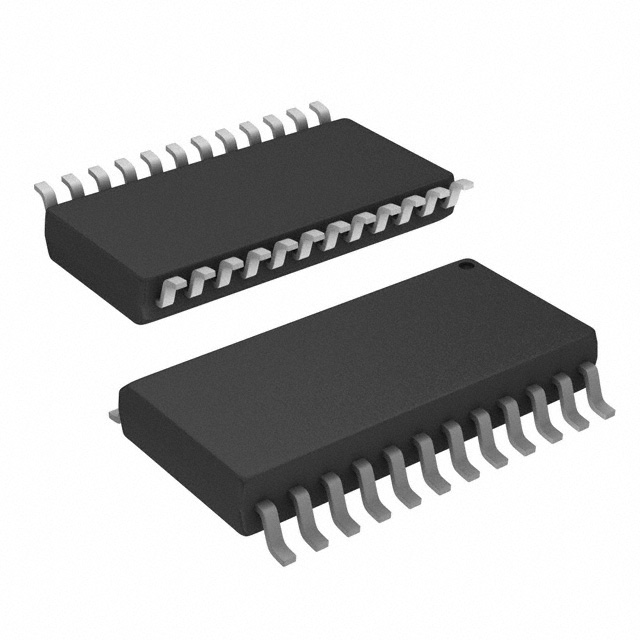

IC MOTOR DRIVER PWM FULL 24-SOIC
Data Sheet
Negotiable
