Product Summary

The 74LCX07MX is a Low Voltage Hex Buffer which contains six buffers. The inputs tolerate voltages up to 7V allowing the interface of 5V systems to 3V systems. The outputs of the 74LCX07MX are open drain and can be connected to other open drain outputs to implement active HIGH wire AND or active LOW wire OR functions. The 74LCX07MX is fabricated with advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.

Parametrics

74LCX07MX absolute maximum ratings: (1)VCC, Supply Voltage: -0.5 to +7.0 V; (2)VI, DC Input Voltage: -0.5 to +7.0 V; (3)VO, DC Output Voltage: -0.5 to +7.0 V; (4)IIK, DC Input Diode Current: -50 mA; (5)IOK, DC Output Diode Current: -50 mA; +50 mA; (6)IO, DC Output Current: ±50 mA; (7)ICC, DC Supply Current per Supply Pin: ±100 mA; (8)IGND, DC Ground Current per Ground Pin: ±100 mA; (9)TSTG, Storage Temperature: -65 to +150℃.

Features

74LCX07MX features: (1)5V tolerant inputs; (2)2.3V to 5.5V VCC specifications provided; (3)2.9 ns tPD max (VCC -3.3V), 10 PA ICC max; (4)Power down high impedance inputs and outputs; (5)+24 mA output drive (VCC -3.0V); (6)Implements patented noise/EMI reduction circuitry; (7)Latch-up performance exceeds JEDEC 78 conditions; (8)ESD performance: Human body model: 2000V; Machine model: 200V; (9)Leadless Pb-Free DQFN package.

Diagrams

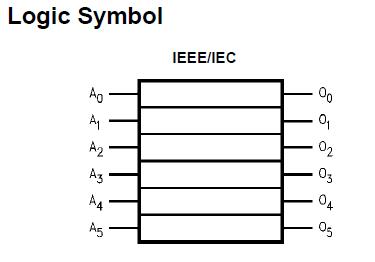

74LCX07MX block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

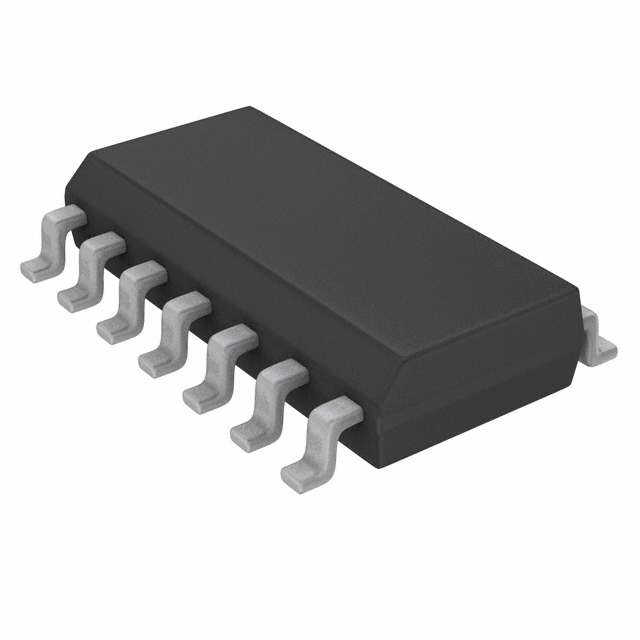

74LCX07MX
74LCX07MX
Fairchild Semiconductor
Buffers & Line Drivers Hex Buffer
Data Sheet
0-1: $0.26
1-25: $0.22
25-100: $0.18
100-250: $0.15
