Product Summary
The Z16C3516VSC is a CMOS superintegrated device with a flexible bus interface unit (BIU) connecting a built-in direct memory access (DMA) cell to the CMOS serial communications control (SCC) cell. The Z16C3516VSC is a dual-channel, multi-protocol data communications peripheral which easily interfaces to CPU’s with either multiplexed or non-multiplexed address and data buses. The advanced CMOS process offers lower power comsumption, higher performance, and superior noise immunity.
Parametrics
Z16C3516VSC absolute maximum ratings: (1)Voltage on all pins, with respect to GND: -0.3 to +7.0V; (2)Opeating ambient temperature: see ordering information; (3)Storage temperature: -85℃ to +150℃; (4)Voltages on all inputs, with respect to GND: -0.3 to VCC +0.3V.
Features
Z16C3516VSC features: (1)Low power CMOS technology; (2)Two general-purpose SCC channels, four DMA channels and universal bus interface unit; (3)Software compatible to the ZILOG CMOS SCC; (4)4 DMA channels, two transmit and two receive channels to an from the SCC; (5)4 gugabyte address range per DMA channel; (6)Flyby DMA transfer mode; (7)Programmable DMA channel prioribies; (8)Independent DMA register set; (9)A universal BUS interface unit providing simple interface to most CPUs multiplexed or non-multiplexed bus, compatible with 680 × 0 and 8 × 86 CPUs; (10)32-bit addresses multiplexed to 16-pin address/data lines; (11)8-bit data supporting high/low byte swapping; (12)10MHz timing; (13)68-pin PLCC.

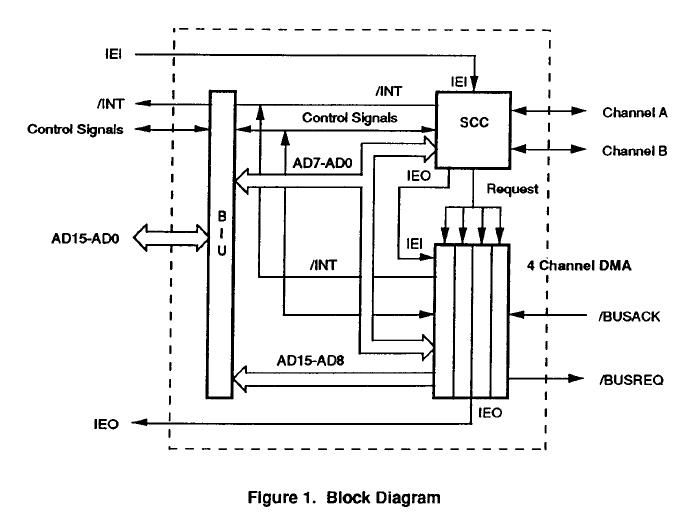

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

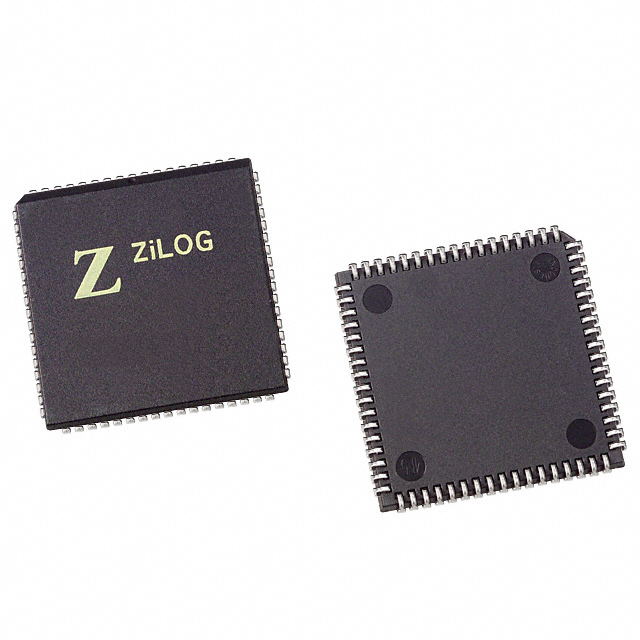

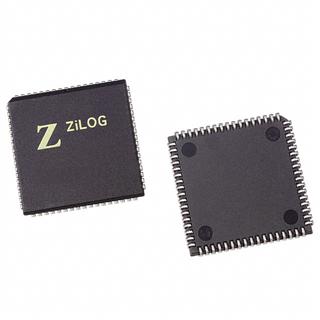

 Z16C3516VSC |
ZiLOG |
I/O Controller Interface IC 16MHz CMOS ISCC |
Data Sheet |
Negotiable |
|
||||||
|
Z16C3516VSC00TR |
|
IC Z16C35 Z8500 ISCC 68PLCC |
Data Sheet |
|
|
||||||
