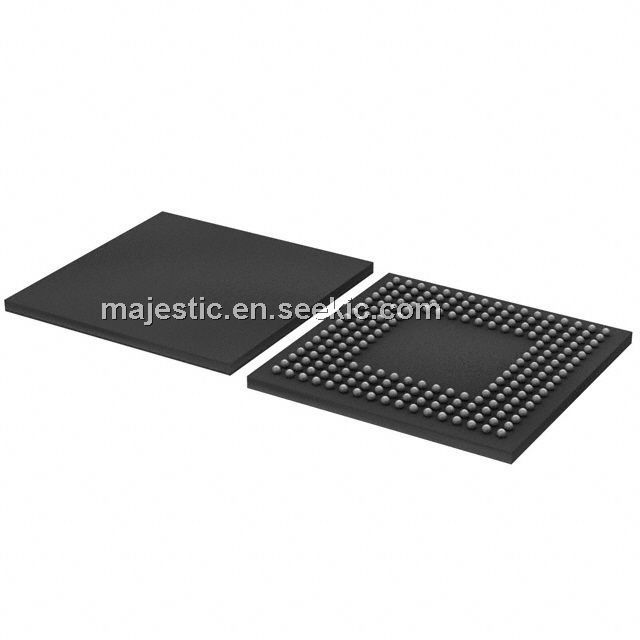

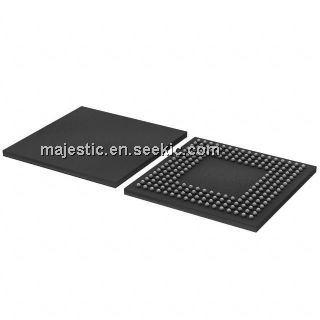

XC5VLX30-1FFG676C

XC5VLX30-1FFG676C, in-system programmable configuration PROM, -0.5 to +4.0V, Xilinx, Inc

Rated 5 Rating 5 | reviews | Write a review

Price:: US $94.60~104.06 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	104.06 / Piece
10 ~ 20 :	99.10 / Piece
20 ~ 50 :	94.60 / Piece

PartNumber:: XC5VLX30-1FFG676C

Brand:: Xilinx, Inc - Xilinx | Pack: | D/C:

Availability:: Supply Ability: 3/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Anne's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-22

From Other Seller

Part Number:XC5VLX30-1FFG676C
US $94.60 - 104.06
Quantity:

piece

Product Summary

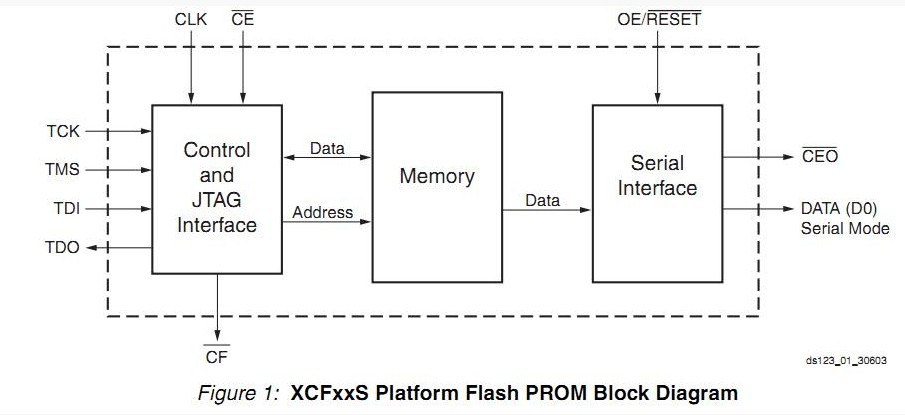

The XC5VLX30-1FFG676C is an in-system programmable configuration PROM. Available in 1 to 32 Megabit (Mbit) densities, the XC5VLX30-1FFG676C provides an easy-to-use, cost-effective, and reprogrammable method for storing large Xilinx FPGA configuration bitstreams. The XC5VLX30-1FFG676C includes both the 3.3V XCFxxS PROM and the 1.8V XCFxxP PROM.

Parametrics

XC5VLX30-1FFG676C absolute maximum ratings: (1)VCCINT, Internal supply voltage relative to GND: –0.5 to +4.0V; (2)VCCO, I/O supply voltage relative to GND: –0.5 to +4.0V; (3)VCCJ, JTAG I/O supply voltage relative to GND: –0.5 to +4.0V; (4)VIN, Input voltage with respect to GND: –0.5 to +3.6V; (5)VTS, Voltage applied to High-Z output: –0.5 to +3.6V; (6)TSTG, Storage temperature (ambient): –65 to +150℃; (8)TJ, Junction temperature: +125℃.

Features

XC5VLX30-1FFG676C features: (1)In-System Programmable PROMs for Configuration of Xilinx FPGAs; (2)Low-Power Advanced CMOS NOR FLASH Process; (3)Endurance of 20,000 Program/Erase Cycles; (4)Operation over Full Industrial Temperature Range (–40 to +85℃); (5)IEEE Standard 1149.1/1532 Boundary-Scan (JTAG) Support for Programming, Prototyping, and Testing; (6)JTAG Command Initiation of Standard FPGA Configuration; (7)Cascadable for Storing Longer or Multiple Bitstreams; (8)Dedicated Boundary-Scan (JTAG) I/O Power Supply (VCCJ); (9)I/O Pins Compatible with Voltage Levels Ranging From 1.5V to 3.3V; (10)Design Support Using the Xilinx Alliance ISE and Foundation ISE Series Software Packages.
