Product Summary
The W181-01G is a PLL spread spectrum frequency synthesizer in the Cypress PREMIS family. The PREMIS family incorporates the latest advances in PLL spread spectrum frequency synthesizer techniques. By frequency modulating the output with a lowfrequency carrier, peak EMI is greatly reduced. Use of this technology allows the W181-01G to pass increasingly difficult EMI testing without resorting to costly shielding or redesign. In a system, not only is EMI reduced in the various clock lines, but also in all signals which are synchronized to the clock.
Parametrics
W181-01G absolute maximum ratings: (1)VDD, VIN Voltage on any pin with respect to GND: -0.5 to +7.0 V; (2)TSTG Storage Temperature: -65 to +150℃; (3)TA Operating Temperature: 0 to +70℃; (4)TB Ambient Temperature under Bias: -55 to +125℃; (5)PD Power Dissipation: 0.5 W.
Features
W181-01G features: (1)Cypress PREMIS?family offering; (2)Generates an EMI optimized clocking signal at the output; (3)Selectable input to output frequency; (4)Single 1.25% or 3.75% down or center spread output; (5)Integrated loop filter components; (6)Operates with a 3.3V or 5V supply; (7)Low power CMOS design; (8)Available in 8-pin SOIC (Small Outline Integrated Circuit) or 14-pin TSSOP (Thin Shrink Small Outline Package select options only).

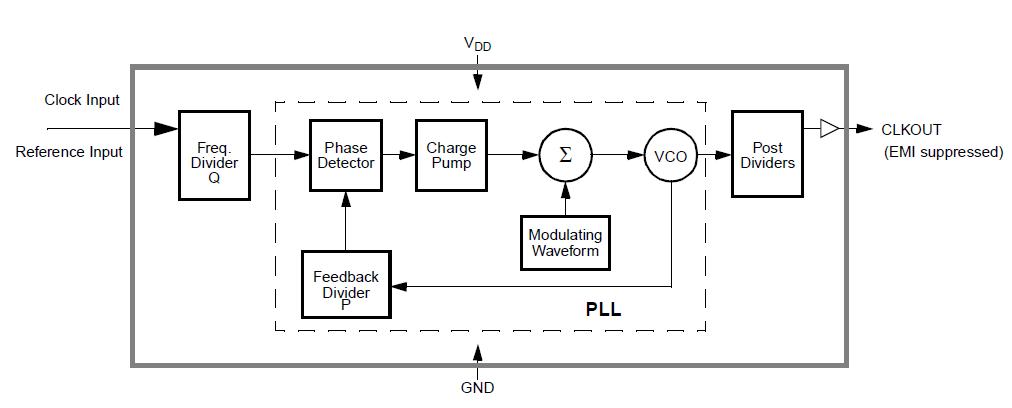

Diagrams
