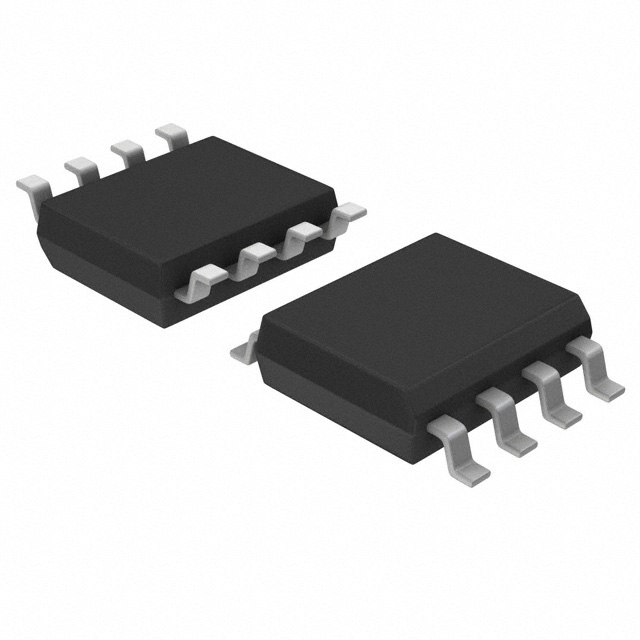

Product Summary
The THS6092ID is a high-speed line driver ideal for driving signals from the remote terminal to the central office in asymmetrical digital subscriber line (ADSL) applications. It can operate from a ±12-V supply voltage while drawing only 8.2 mA of supply current per channel. It offers low –79 dBc total harmonic distortion driving a 100-Ω load (2 Vpp). The THS6092ID offers a high 43-Vpp differential output swing across a 200-Ω load from a ±12-V supply. The THS6092ID is packaged in standard SOIC, SOIC PowerPAD, and TSSOP PowerPAD packages.
Parametrics
THS6092ID absolute maximum ratings: (1)Supply voltage, VCC+ to VCC–: 33 V; (2)Input voltage: ± VCC; (3)Output current: 450 mA; (4)Differential input voltage: ± 4 V; (5)Maximum junction temperature: 150℃; (6)Total power dissipation at (or below) 25℃ free-air temperature: See Dissipation Ratings Table; (7)Operating free-air temperature, TA: Commercial: 0℃ to 70℃; Industrial: -40℃ to 85℃; (8)Storage temperature, Tstg : Commercial: -65℃ to 125℃; (9)Industrial: -65℃ to 125℃; (10)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 300℃.
Features
THS6092ID features: (1)Remote Terminal ADSL Line Driver, Ideal for Both Full Rate ADSL and G.Lite; Compatible With 1:1 Transformer Ratio; (2)Low 2.1 pA/√Hz Noninverting Current Noise, Reduces Noise Feedback Through Hybrid Into Downstream Channel; (3)Wide Supply Voltage Range ±5 V to ±15 V; (4)Wide Output Swing; (5)High Output Current; (6)High Speed, 120 MHz (–3 dB, G=1, ±12 V, RL = 25 Ω); 1200 V/μs Slew Rate (G = 4, ±12 V); (7)Low Distortion, Single-Ended, G = 4, –79 dBc (250 kHz, 2 Vpp, 100-Ω load); (8)Low Power Shutdown (THS6043), 300-μA Total Standby Current; (9)Thermal Shutdown and Short-Circuit Protection; (10)Standard SOIC, SOIC PowerPAD and TSSOP PowerPAD. Package; (11)Evaluation Module Available.

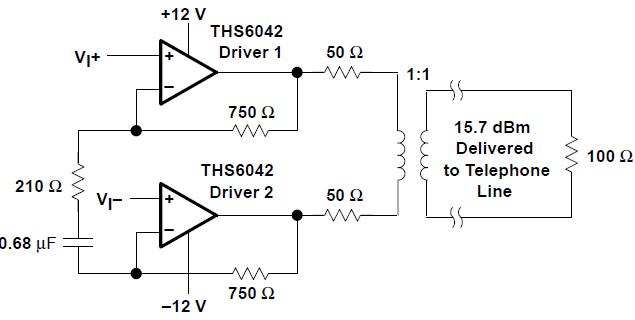

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

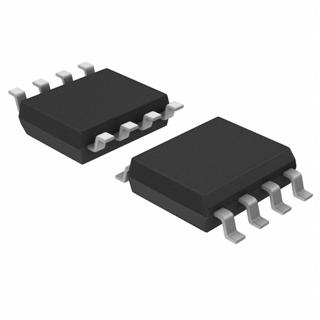

 THS6092ID |
Texas Instruments |
Buffers & Line Drivers 275-mA +12V ADSL CPE Line Driver |
Data Sheet |
|
|
||||||||||||
|
THS6092IDDA |
Texas Instruments |
High Speed Operational Amplifiers 275-mA +12V ADSL CPE Line Driver |
Data Sheet |
Negotiable |
|
||||||||||||
|
THS6092IDDAG3 |
Texas Instruments |
High Speed Operational Amplifiers 275-mA +12V ADSL CPE Line Driver |
Data Sheet |
Negotiable |
|
||||||||||||
|
THS6092IDG4 |
Texas Instruments |
Buffers & Line Drivers 275-mA +12V ADSL CPE Line Driver |
Data Sheet |
|
|
||||||||||||
|
THS6092IDDAR |
Texas Instruments |
Buffers & Line Drivers 275-mA +12V ADSL CPE Line Driver |
Data Sheet |
|
|
||||||||||||
|
THS6092IDDARG3 |
Texas Instruments |
Buffers & Line Drivers 275-mA +12V ADSL CPE Line Driver |
Data Sheet |
|
|
||||||||||||
|
THS6092IDR |
Texas Instruments |
High Speed Operational Amplifiers 275-mA +12V ADSL CPE Line Driver |
Data Sheet |
Negotiable |
|
||||||||||||
|
THS6092IDRG4 |
Texas Instruments |
High Speed Operational Amplifiers 275-mA +12V ADSL CPE Line Driver |
Data Sheet |
Negotiable |
|
||||||||||||
