Product Summary
The CD4051BE is a CMOS Analog Multiplexers/Demultiplexer. The CD4051BE is digitally-controlled analog switche having low ON impedance and very low OFF leakage current. Control of analog signals up to 20VP-P can be achieved by digital signal amplitudes of 4.5V to 20V (if VDD-VSS = 3V, a VDD-VEE of up to 13V can be controlled; for VDD-VEE level differences above 13V, a VDD-VSS of at least 4.5V is required). For example, if VDD = +4.5V, VSS = 0V, and VEE = -13.5V, analog signals from -13.5V to +4.5V can be controlled by digital inputs of 0V to 5V. The applications of the CD4051BE include Analog and Digital Multiplexing and Demultiplexing, A/D and D/A Conversion, Signal Gating.
Parametrics
CD4051BE absolute maximum ratings: (1)Supply Voltage (V+ to V-) Voltages Referenced to VSS Terminal: -0.5V to 20V; (2)DC Input Voltage Range: -0.5V to VDD +0.5V; (3)DC Input Current, Any One Input: ±10mA.
Features
CD4051BE features: (1)Wide Range of Digital and Analog Signal Levels, Digital: 3V to 20V; Analog: 20VP-P; (2)Low ON Resistance, 125Ω (Typ) Over 15VP-P Signal Input Range for VDD-VEE = 18V; (3)High OFF Resistance, Channel Leakage of ±100pA (Typ) at VDD-VEE = 18V; (4)Logic-Level Conversion for Digital Addressing Signals of 3V to 20V (VDD-VSS = 3V to 20V) to Switch Analog Signals to 20VP-P (VDD-VEE = 20V); (5)Matched Switch Characteristics, rON = 5Ω (Typ) for VDD-VEE = 15V; (6)Very Low Quiescent Power Dissipation Under All Digital-Control Input and Supply Conditions, 0.2μW (Typ) at VDD-VSS = VDD-VEE = 10V; (7)Binary Address Decoding on Chip; (8)5V, 10V, and 15V Parametric Ratings; (9)100% Tested for Quiescent Current at 20V; (10)Maximum Input Current of 1μA at 18V Over Full Package; (11)Temperature Range, 100nA at 18V and 25℃; (12)Break-Before-Make Switching Eliminates Channel Overlap.

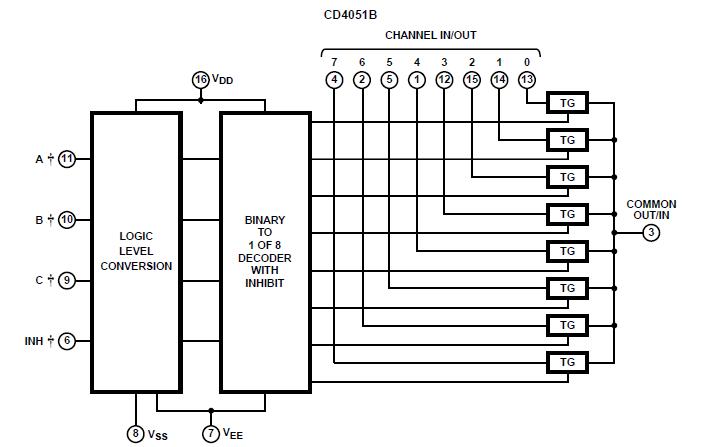

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

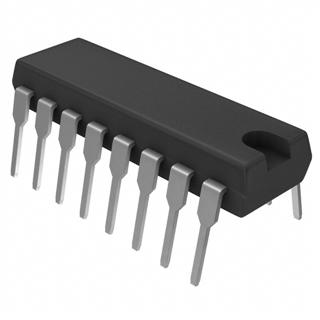

 CD4051BE |
Texas Instruments |
Multiplexer Switch ICs 8-Channel Analog |
Data Sheet |
|
|
||||||||||||
 |
CD4051BEE4 |
Texas Instruments |
Multiplexer Switch ICs 8-Channel Analog |
Data Sheet |
|
|
||||||||||||
