Product Summary
The STM32F103VBT6 is a perfomance line, ARM-based 32-bit MCU with flash, USB, CAN, seven 16-bit timers, two ADCs and line communication interfaces. The STM32F103VBT6 incorporates the high-performance ARM Cortex-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 128Kbytes and SRAM up to 20 Kbytes) , and an extensive range of enhanced I/Os and peripherals connected to two APB buses. Applications of the STM32F103VBT6 include: Motor drive and application control, Medical and handheld equipment, PC peripherals gaming and GPS platforms, Industrial applications: PLC, inverters, printers, and scanners and Alarm systems, Video intercom, and HVAC.
Parametrics
STM32F103VBT6 absolute maximum ratings: (1) External 3.3 V supply voltage (including VDDA and VDD, VDD-VSS: -0.3 to 4.0V; (2) Input voltage on five volt tolerant pin, VIN: Vss-0.3 to +5.5V; (3) Variations between different power pins: 50mV; (4) Variations between all the different ground pins: 50mV.
Features
STM32F103VBT6 features: (1) Core: ARM 32-bit Cortex-M3 CPU; (2) Clock, reset and supply management; (3) Low power; (4) Debug mode: Serial wire debug (SWD) & JTAG interface; (5) Up to 80 fast I/O ports; (6) Up to 9 communication interfaces; (7) Up to 9 communication interfaces.

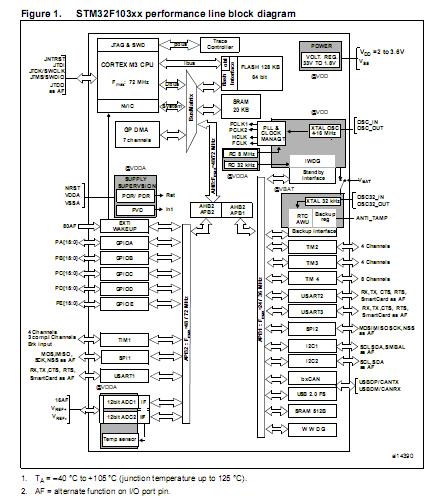

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STM32F103VBT6 |
STMicroelectronics |
ARM Microcontrollers (MCU) 32BIT Cortex M3 128K 20KB RAM 2X12 ADC |
Data Sheet |
|
|
||||||||||||
|
STM32F103VBT6TR |
STMicroelectronics |
ARM Microcontrollers (MCU) 32BIT CORTEX M3 128K Flash 20KB RAM |
Data Sheet |
|
|
||||||||||||
