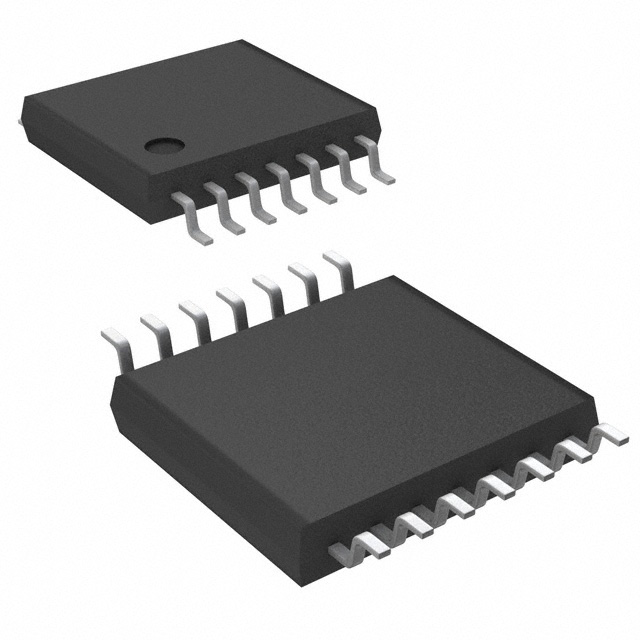

Product Summary

The SN74LVC74APW is a dual positive-edge-triggered D-type flip-flop designed for 1.65-V to 3.6-V VCC operation.

Parametrics

SN74LVC74APW absolute maximum ratings: (1)VCC, Supply voltage range: -0.5 to 6.5 V; (2)VI, Input voltage range: -0.5 to 6.5 V; (3)VO, Output voltage range: -0.5 to VCC +0.5 V; (4)IIK, Input clamp current VI < 0: -50 mA; (5)IOK, Output clamp current VO < 0: -50 mA; (6)IO, Continuous output current: ±50 mA; (7)Continuous current through VCC or GND: ±100 mA; (8)Tstg, Storage temperature range: -65 to 150℃.

Features

SN74LVC74APW features: (1)Latch-Up Performance Exceeds 250 mA Per; (2)Operate From 1.65 V to 3.6 V JESD 17; (3)Inputs Accept Voltages to 5.5 V; (4)ESD Protection Exceeds JESD 22; (5)Max tpd of 5.2 ns at 3.3 V, 2000-V Human-Body Model (A114-A); 200-V Machine Model(A115-A); 1000-V Charged-Device Model (C101); (6)Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25℃; (7)Typical VOHV (Output VOH Undershoot) >2 V at VCC = 3.3 V, TA = 25℃.

Diagrams

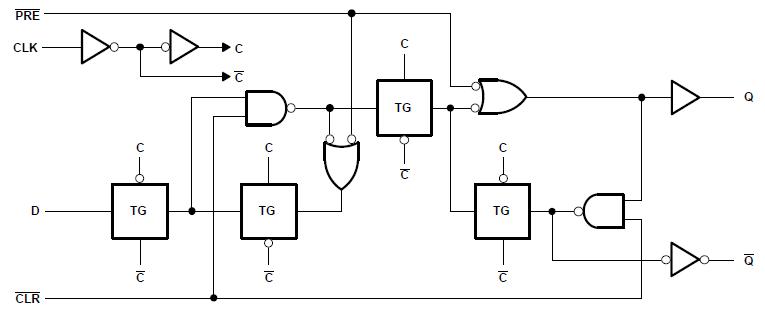

SN74LVC74APW block diagram
