Product Summary

The A1020B-PL68C is a field programmable gate array (FPGA). It offers a variety of package, speed, and application combinations. The unique architecture offers gate array flexibility, high performance, and instant turnaround through user programming.

Parametrics

A1020B-PL68C absolute maximum ratings: (1)VCC, DC Supply Voltage: -0.5 to +7.0 Volts; (2)VI, Input Voltage: -0.5 to VCC +0.5 Volts; (3)VO, Output Voltage: -0.5 to VCC +0.5 Volts; (4)IIO, I/O Sink/Source Current: ±20 mA; (5)TSTG, Storage Temperature: –65 to +150℃.

Features

A1020B-PL68C features: (1)5V and 3.3V Families fully compatible with JEDEC specifications; (2)Up to 2000 Gate Array Gates (6000 PLD equivalent gates); (3)Replaces up to 50 TTL Packages; (4)Replaces up to twenty 20-Pin PAL? Packages; (5)Design Library with over 250 Macro Functions; (6)Gate Array Architecture Allows Completely Automatic Place and Route; (7)Up to 547 Programmable Logic Modules; (8)Up to 273 Flip-Flops; (9)Data Rates to 75 MHz; (10)Two In-Circuit Diagnostic Probe Pins Support Speed Analysis to 25 MHz; (11)Built-In High Speed Clock Distribution Network; (12)I/O Drive to 10 mA (5 V), 6 mA (3.3 V); (13)Nonvolatile, User Programmable; (14)Fabricated in 1.0 micron CMOS technology.

Diagrams

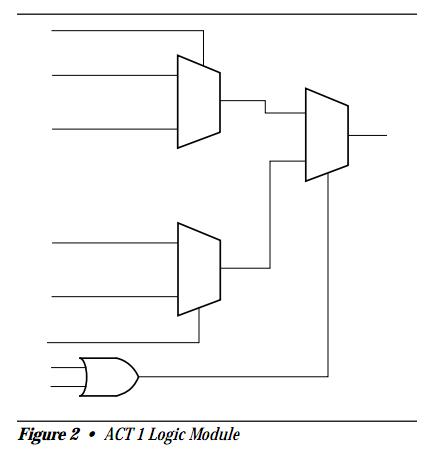

A1020B-PL68C block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
A1020B-PL68C
A1020B-PL68C


IC FPGA 2K GATES 68-PLCC COM

Data Sheet
