Product Summary

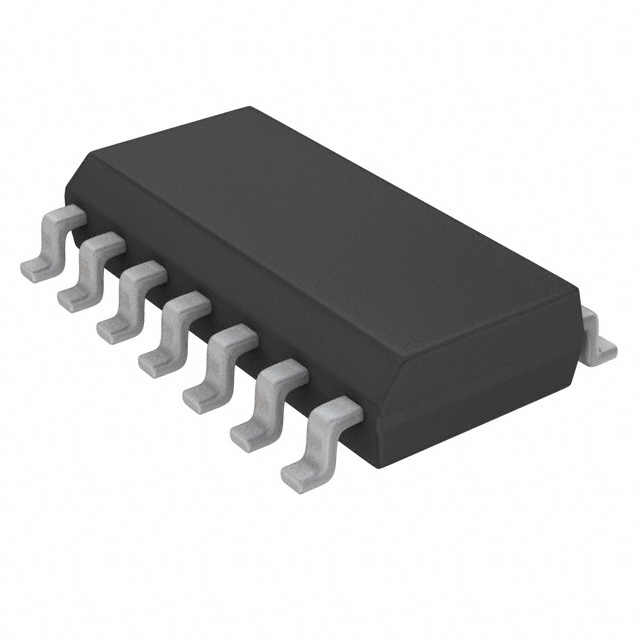

The SN74HC164D is an 8-bit shift register. The SN74HC164D features AND-gated serial inputs and an asynchronous clear (CLR) input. The gated serial (A and B) inputs permit complete control over incoming data; a low at either input inhibits entry of the new data and resets the first flip-flop to the low level at the next clock (CLK) pulse. A high-level input enables the other input, which then determines the state of the first flip-flop. Data of the SN74HC164D at the serial inputs can be changed while CLK is high or low, provided the minimum setup time requirements are met. Clocking occurs on the low-to-high-level transition of CLK.
Parametrics
SN74HC164D absolute maximum ratings: (1)Supply voltage range: -0.5 V to 7 V; (2)Input clamp current: ±20mA; (3)Output clamp current: ±20mA; (4)Continuous output current: ±25mA; (5)Continuous current through VCC or GND: ±50mA; (6)Package thermal impedance: 86℃/W; (7)Storage temperature range: -65℃ to 150℃.
Features
SN74HC164D features: (1)Wide Operating Voltage Range of 2 V to 6 V; (2)Outputs Can Drive Up To 10 LSTTL Loads; (3)Low Power Consumption, 80-μA Max ICC; (4)Typical tpd = 20 ns; (5)±4-mA Output Drive at 5 V; (6)Low Input Current of 1μA Max; (7)AND-Gated (Enable/Disable) Serial Inputs; (8)Fully Buffered Clock and Serial Inputs; (9)Direct Clear.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74HC164D |
Texas Instruments |
Counter Shift Registers 8-Bit Parallel-Load |
Data Sheet |
|
|
||||||||||||
|
SN74HC164DE4 |
Texas Instruments |
Counter Shift Registers 8-Bit Parallel-Out Ser Shift Register |
Data Sheet |
|
|
||||||||||||
|
SN74HC164DR |
Texas Instruments |
Counter Shift Registers 8-Bit Parallel Out Serial Register |
Data Sheet |
|
|
||||||||||||
|
SN74HC164DG4 |
Texas Instruments |
Counter Shift Registers 8B Parallel Out Serial Shift Registr |
Data Sheet |
|
|
||||||||||||
|
SN74HC164DRE4 |
Texas Instruments |
Counter Shift Registers 8-Bit Parallel-Out Ser Shift Register |
Data Sheet |
|
|
||||||||||||
|
SN74HC164DRG3 |
Texas Instruments |
Registers 8B Para-Out Serial Shift Register |
Data Sheet |
|
|
||||||||||||
|
SN74HC164DRG4 |
Texas Instruments |
Counter Shift Registers 8-Bit Parallel-Out Ser Shift Register |
Data Sheet |
|
|
||||||||||||
|
SN74HC164DT |
Texas Instruments |
Counter Shift Registers 8-Bit Parallel-Out Ser Shift Register |
Data Sheet |
|
|
||||||||||||
