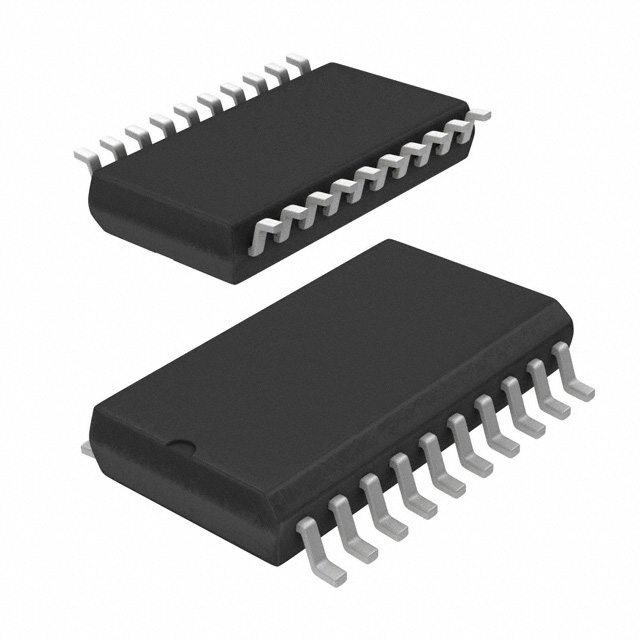

Product Summary
The SN74AS760DWR is an octal buffer and line driver designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters by eliminating the need for 3-state overlap protection.The SN74AS760DWR provides the choice of selected combinations of inverting outputs, symmetrical active-low output-enable (OE) inputs, and complementary OE and OE inputs.
Parametrics
SN74AS760DWR absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage, VI: 7 V; (3)Off-state output voltage: 7 V; (4)Operating free-air temperature range, TA: : 0℃ to 70℃; (5)Storage temperature range: -65℃ to 150℃.
Features
SN74AS760DWR features: (1)Open-Collector Outputs Drive Bus Lines or Buffer Memory Address Registers; (2)Eliminates the Need for 3-State Overlap Protection; (3)pnp Inputs Reduce dc Loading; (4)Open-Collector Versions of 4ALS244 and 4AS244; (5)Package Options Include Plastic Small-Outline (DW) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) 300-mil DIPs.

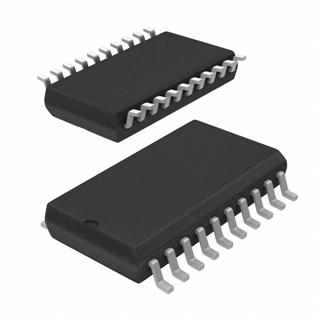

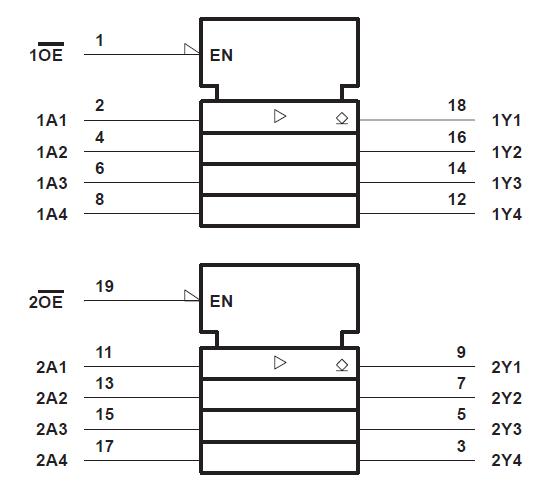

Diagrams
