Product Summary

The RPI-222 is an ultra-small size, double-layer mold photointerrupter. The applications of the RPI-222 include Optical control equipment, Cameras, Floppy disk drives, Digital video disc.

Parametrics

RPI-222 absolute maximum ratings: (1)Forward current, IF: 50mA; (2)Reverse voltage, VR: 5V; (3)Power dissipation, PD: 80mW; (4)Collector-emitter voltage, VCEO: 30V; (5)Emitter-collector voltage, VECO: 4.5V; (6)Collector current, IC: 30mA; (7)Collector power dissipation, PC: 80mW; (8)Operating temperature, Topr: -25 to +85℃; (9)Storage temperature, Tstg: -30 to +85℃.

Features

RPI-222 features: (1)Ultra-small; (2)Minimal influence from stray light; (3)Low collector-emitter saturation voltage.

Diagrams

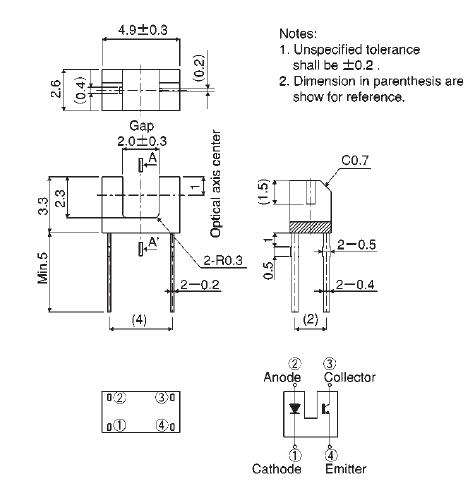

RPI-222 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RPI-222
RPI-222
ROHM Semiconductor
Optical Switches, Transmissive, with Phototransistor Output PHOTOINTPTR ULTRAMIN HIGH RES 4.9x2.6mm
Data Sheet
0-2000: $0.21
2000-6000: $0.21
