Product Summary
The NCP565D2T12R4G is a low dropout linear regulator will provide 1.5 A at a fixed output voltage or an adjustable voltage down to 0.9 V. The fast loop response and low dropout voltage make this regulator ideal for applications where low voltage and good load transient response are important. Device protection includes current limit, short circuit protection, and thermal shutdown. The NCP565D2T12R4G is packaged in a 5 pin D2PAK for adjustable voltage version and a 3 pin D2PAK for fixed voltage version. The applications of the NCP565D2T12R4G include Servers, ASIC Power Supplies, Post Regulation for Power Supplies, Constant Current Source.
Parametrics
NCP565D2T12R4G absolute maximum ratings: (1)Input Voltage (Note 1) Vin: 9.0 V; (2)Output Pin Voltage Vout: -0.3 to Vin + 0.3 V; (3)Adjust Pin Voltage Vadj: -0.3 to Vin + 0.3 V; (4)Thermal Characteristics (Note 2), Case 936A, Thermal Resistance, Junction-to-Air, RθJA: 45℃/W; Thermal Resistance, Junction-to-Case, RθJC: 5.0℃/W; (5)Operating Junction Temperature Range, TJ: -40 to 150℃; (6)Storage Temperature Range, Tstg: -55 to 150℃.
Features
NCP565D2T12R4G features: (1)Pb-Free Packages are Available; (2)Ultra Fast Transient Response (<1.0 μs); (3)Low Ground Current (1.1 mA @ Iload = 1.5 A); (4)Low Dropout Voltage (0.9 V @ Iload = 1.5 A); (5)Low Noise (28 μVrms); (6)0.9 V Reference Voltage; (7)Adjustable Output Voltage from 7.7 V down to 0.9 V; (8)1.2 V Fixed Output Version. Other Fixed Voltages Available on; (9)Request; (10)Current Limit Protection (3.5 A); (11)Thermal Shutdown Protection (155℃).

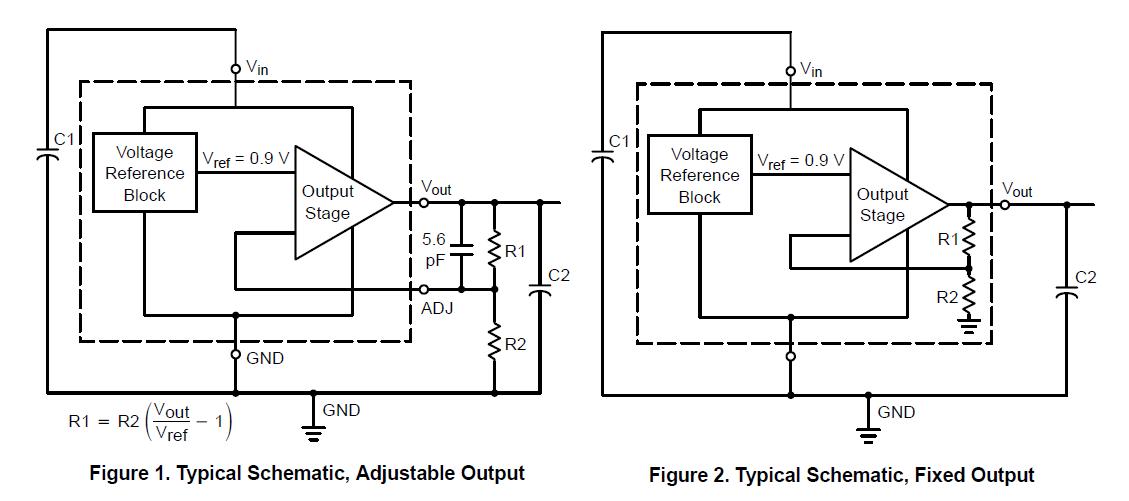

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NCP565D2T12R4G |
ON Semiconductor |
Low Dropout (LDO) Regulators 1.2V 1.5A Fast Transient |
