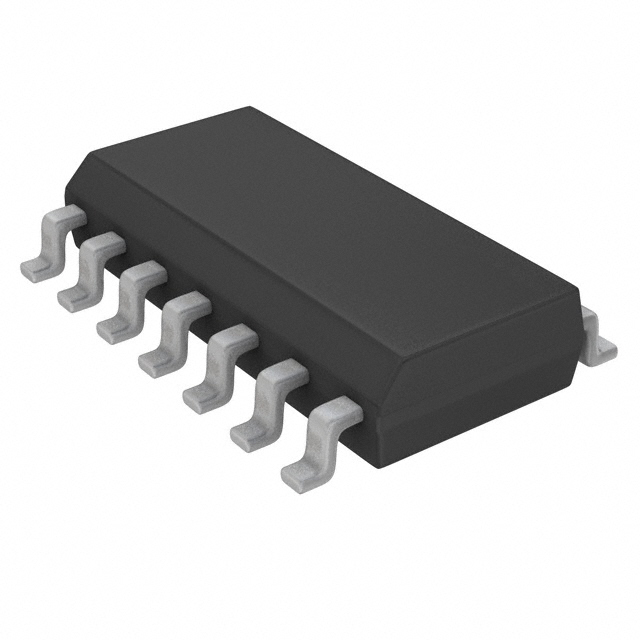

Product Summary
The MIC2562A-1BM is a PCMCIA (Personal Computer Memory Card International Association) and CardBus Power Controller handles all PC Card slot power supply pins, both VCC and VPP. The MIC2562A-1BM switches between the three VCC voltages (0V, 3.3V and 5.0V) and the VPP voltages (OFF, 0V, 3.3V, 5V, or 12.0V) required by PC Cards. The applications of the MIC2562A-1BM include PC Card Power Supply Pin Voltage Switch, CardBus Slot Power Supply Control, Data Collection Systems, Machine Control Data Input Systems, Wireless Communications, Bar Code Data Collection Systems, Instrumentation Configuration/Datalogging, Docking Stations (portable and desktop), Power Supply Management, Analog Power Switching.
Parametrics
MIC2562A-1BM absolute maximum ratings: (1)Power Dissipation, TAMBIENT ≤ 25℃: Internally Limited, SOIC: 800 mW; (2)Derating Factors (To Ambient), SOIC: 4 mW/℃; (3)Storage Temperature: -65℃ to +150℃; (4)Operating Temperature (Die): 125℃; (5)Lead Temperature (5 sec): 260℃; (6)Supply Voltage, VPP IN: 15V; VCC3 IN: 7.5V; VCC5 IN: 7.5V; (7)FLAG Pull-up Voltage: 7.5V; (8)Logic Input Voltages: -0.3V to +10V.
Features
MIC2562A-1BM features: (1)High Efficiency, Low Resistance Switches Require No 12V Bias Supply; (2)No External Components Required; (3)Output Current Limit and Overtemperature Shutdown; (4)Open-Drain Flag for Error Condition Indication; (5)Ultra Low Power Consumption; (6)Complete PC Card/CardBus VCC and VPP Switch Matrix in a Single Package; (7)Logic Compatible with Industry Standard PC Card Logic Controllers; (8)No Voltage Shoot-Through or Switching Transients; (9)Break-Before-Make Switching; (10)Digital Selection of VCC and VPP Voltages; (11)Over 1A VCC Output Current; (12)Over 200mA VPP Output Current; (13)Small 14-Pin SOIC Package.

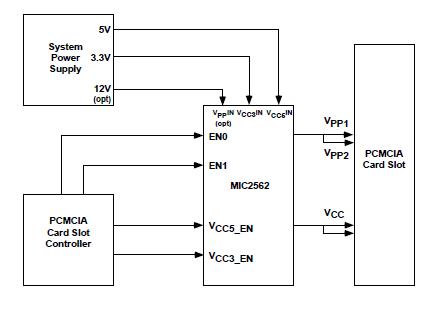

Diagrams
