Product Summary
The MC68040RC33V is a Motorola’s third generation of M68000-compatible, high-performance, 32-bit microprocessor. The device is virtual memory microprocessors employing multiple concurrent execution units and a highly integrated architecture that provides very high performance in a monolithic HCMOS device. The MC68040RC33V integrates an MC68030-compatible integer unit (IU) and two independent caches. The device contains dual, independent, demand-paged memory management units (MMUs) for instruction and data stream accesses and independent, 4-Kbyte instruction and data caches.
Parametrics
MC68040RC33V absolute maximum ratings: (1)Supply Voltage, VCC: -0.3 to +7.0 V; (2)Input Voltage, Vin: –0.5 to +7.0 V; (3)Maximum Operating Junction Temperature, TJ: 110℃; (4)Minimum Operating Ambient Temperature, TA: 0℃; (5)Storage Temperature Range, Tstg: -55 to 150℃.
Features
MC68040RC33V features: (1)6-Stage Pipeline, MC68030-Compatible IU; (2)MC68881/MC68882-Compatible FPU; (3)Independent Instruction and Data MMUs; (4)Simultaneously Accessible, 4-Kbyte Physical Instruction Cache and 4-Kbyte Physical Data Cache; (5)Low-Latency Bus Accesses for Reduced Cache Miss Penalty; (6)Multimaster/Multiprocessor Support via Bus Snooping; (7)Concurrent IU, FPU, MMU, and Bus Controller Operation Maximizes Throughput; (8)32-Bit, Nonmultiplexed External Address and Data Buses with Synchronous Interface; (9)User Object-Code Compatible with All Earlier M68000 Microprocessors; (10)4-Gbyte Direct Addressing Range; (11)Software Support Including Optimizing C Compiler and UNIX System V Port.

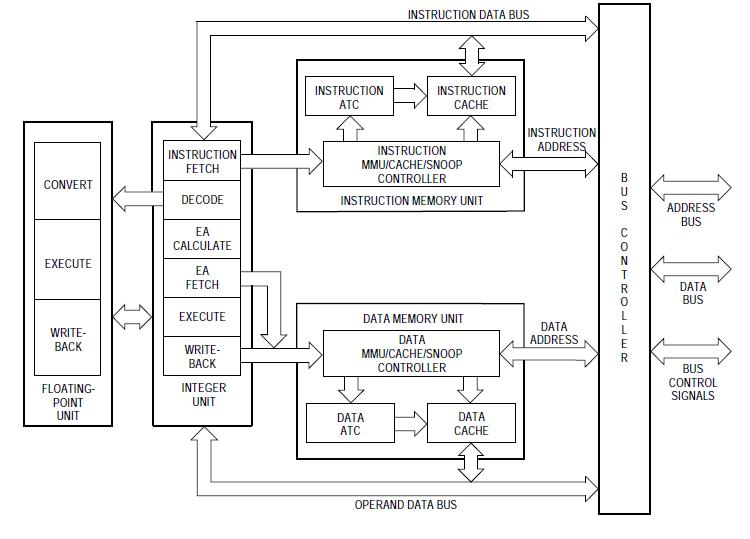

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC68040RC33V |
Freescale Semiconductor |
Microprocessors (MPU) 32B W/ CACHE MMU |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
MC6800 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
MC6801 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
MC68020 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
MC68020CEH16E |
Freescale Semiconductor |
Microprocessors (MPU) 32-BIT MPU |
Data Sheet |
Negotiable |
|
||||||
|
MC68020CEH25E |
Freescale Semiconductor |
Microprocessors (MPU) 32-BIT MPU |
Data Sheet |
Negotiable |
|
||||||
|
MC68020CRC16E |
Freescale Semiconductor |
Microprocessors (MPU) 32-BIT MPU |
Data Sheet |
Negotiable |
|
||||||
