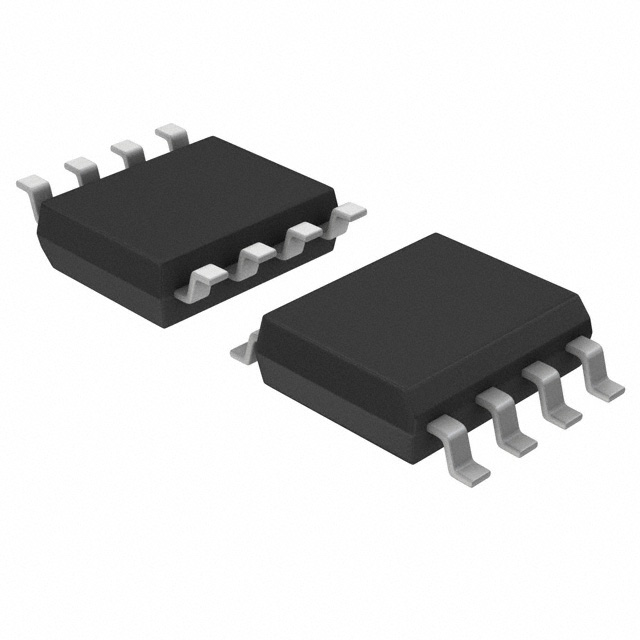

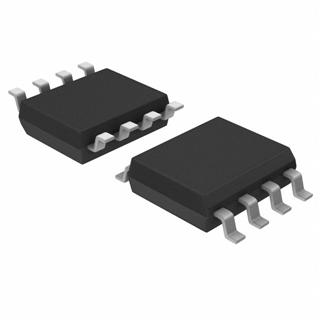

MAX689CSA

MAX689CSA, Low-Dropout Linear Regulator, SOP, 12V, 10mA, Dallas Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.60~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.60~1.50

PartNumber:: MAX689CSA

Brand:: Dallas Semiconductor - Maxim | Pack: SOP | D/C: 98+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Anne's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:MAX689CSA
US $0.60 - 1.50
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAX689CSA is a low-dropout linear regulator which operates with an input-to-output voltage differential limited only by an external PNP transistor. Outputs are fixed at 3.3V (MAX687/MAX688) or 3.0V (MAX689). The only external components required are a PNP pass transistor and output, compensation, and bypass capacitors. Base drive to the external transistor is at least 10mA, permitting output currents to exceed 1A when using high-gain transistors (b > 100). The applications of the MAX689CSA include High-Efficiency Linear Regulator, Battery-Powered Devices, Portable Instruments, Portable Telephones, Power Supply or Backup Supply for Memory.

Parametrics

MAX689CSA absolute maximum ratings: (1)Input Supply Voltage IN to GND: 12V; (2)Terminal Voltages to GND; (3)PFO (MAX687): -0.3V to VOUT + 0.3V; (4)PFO (MAX688/MAX689): -0.3V to 12V; (5)All Remaining Pins: -0.3V to VIN + 0.3V; (6)PFO Sink Current: 10mA; (7)PFO Source Current (MAX687): 10mA; (8)Storage Temperature Range: -65℃ to +165℃; (9)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX689CSA features: (1)Fixed Outputs: 3.3V (MAX687/MAX688); 3.0V (MAX689); (2)Directly Drives External PNP Transistor; (3)10mA Min Base-Current Drive for >1A Output; (4)Low Dropout Voltage: 100mV Dropout at 650mA Output (FZT749); 40mV Dropout at 200mA Output (FZT749) 0.8V Dropout at 4A Output; (5)Power-Fail Output Monitors the Output Voltage; (6)Automatic, Latched Shutdown when Output Falls Out of Regulation (MAX687); (7)Precision Threshold Shutdown Control (MAX688/MAX689); (8)Low Supply Current: 150μA Operating; <1μA Shutdown; (9)2.7V to 11.0V Supply Range; (10)8-Pin DIP/SO/μMAX Packages; (11)<2mV Line Transient with 3.4V to 3.6V Input; (12)Output Accuracy <±2%.
