Product Summary
The MAX6141EUR-T is a low-dropout, micropower, three-terminal voltage reference offers 2.5V, 4.096V, 4.5V, 5.0V, and adjustable (1.23V to 12.4V) output voltages, respectively. Low, 200mV dropout makes these devices ideal for 3V and 5V systems. Unlike two-terminal references that waste battery current and require an external resistor, the MAX6141EUR-T family’s supply current is virtually independent of input voltage variations, which translates to longer battery life. The applications of the MAX6141EUR-T include 3V/5V Systems, Battery-Powered Systems, Portable and Hand-Held Equipment, Data-Acquisition Systems, Instrumentation and Process Control.
Parametrics
MAX6141EUR-T absolute maximum ratings: (1)Voltage (with respect to GND), IN: -0.3V to +13.5V; OUT, ADJ: -0.3V to (VIN + 0.3V); (2)Output Short-Circuit Duration (to IN or GND): Continuous; (3)Continuous Power Dissipation (TA = +70℃), 8-Pin SO (derate 5.9mW/℃ above +70℃): 471mW; 3-Pin SOT23 (derate 4mW/℃ above +70℃): 320mW; 4-Pin SOT143 (derate 4mW/℃ above +70℃): 320mW; (4)Operating Temperature Range: -40℃ to +85℃; (5)Storage Temperature Range: -65℃ to +160℃; (6)Lead Temperature (soldering, 10sec): +300℃.
Features
MAX6141EUR-T features: (1)3-Pin SOT23 Package (MAX6125/41/45/50), 4-Pin SOT143 Package (MAX6160); (2)Low, 200mV Dropout Voltage; (3)75μA Supply Current, Independent of Input Voltage; (4)15ppm/℃ Typical Tempco (50ppm/℃ max); (5)Stable for All Capacitive Loads up to 10nF; (6)Adjustable Output Voltage from 1.23V to (VIN - 0.2V) (MAX6160); (7)Optimized for 3V/5V Operation.

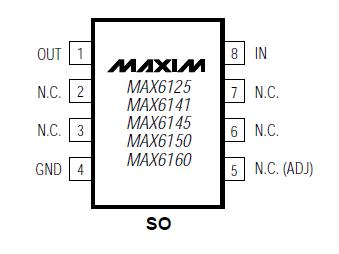

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX6141EUR-T |
Maxim Integrated Products |
Voltage & Current References |
Data Sheet |
Negotiable |
|
||||||||||||
