Product Summary
The MAX4619CPE+ is a high-speed, low voltage, CMOS analog IC configured as a three single-pole/double-throw (SPDT) switch. The CMOS device can operate continuously with a +2V to +5.5V single supply. Each switch can handle Rail-to-Rail analog signals. The off-leakage current is only 1nA at TA = +25℃ and 10nA at TA = +85℃. The applications of the MAX4619CPE+ include Battery-Operated Equipment, Audio/Video Signal Routing, Low-Voltage Data-Acquisition Systems, Communications Circuits.
Parametrics
MAX4619CPE+ absolute maximum ratings: (1)Voltages Referenced to GND VCC, A, B, C, or Enable: -0.3V to +6V; (2)Voltage into Any Analog Terminal: -0.3V to (VCC + 0.3V); (3)Continuous Current into Any Terminal: ±75mA; (4)Peak Current, X_, Y_, Z_ (pulsed at 1ms, 10% duty cycle): ±200mA; (5)Continuous Power Dissipation (TA = +70℃), TSSOP (derate 6.7mW/℃ above +70℃): 533mW.
Features
MAX4619CPE+ features: (1)Fast Switching Times, 15ns tON; 10ns tOFF; (2)Pin Compatible with Industry-Standard 74HC4051/74HC4052/74HC4053 and MAX4581/MAX4582/MAX4583; (3)Guaranteed On-Resistance, 10W max (+5V Supply); 20W max (+3V Supply); (4)Guaranteed 1W On-Resistance Match Between, Channels (single +5V supply); (5)Guaranteed Low Off-Leakage Current: 1nA at +25℃; (6)Guaranteed Low On-Leakage Current: 1nA at +25℃; (7)+2V to +5.5V Single-Supply Operation; (8)TTL/CMOS-Logic Compatible; (9)Low Crosstalk: <-96dB; (10)High Off-Isolation: <-93dB; (11)Low Distortion: <0.017% (600Ω).

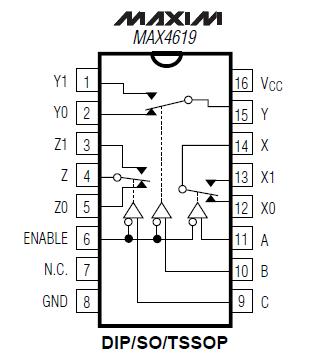

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX4619CPE+ |
Maxim Integrated Products |
Multiplexer Switch ICs 3Ch SPDT Low V Analog Switch |
Data Sheet |
|
|
||||||||||||
