Product Summary
The MAX4053ACEE is a low-voltage, CMOS analog IC configured as a three single-pole/double-throw (SPDT) switch. The A-suffix parts are fully characterized for on-resistance match, on-resistance flatness, and low leakage. The MAX4053ACEE can operate continuously with dual power supplies ranging from ±2.7V to ±8V or a single supply between +2.7V and +16V. Each switch can handle rail-to-rail analog signals. The off leakage current is only 0.1nA at +25℃ or 5nA at +85℃. The applications of the MAX4053ACEE include Battery-Operated Equipment, Audio and Video Signal Routing, Low-Voltage Data-Acquisition Systems, Communications Circuits.
Parametrics
MAX4053ACEE absolute maximum ratings: (1)Voltages Referenced to GND, V+: -0.3V to +17V; V-: +0.3V to -17V; V+ to V-: -0.3V to +17V; (2)Voltage into Any Terminal: (V- - 2V) to (V+ + 2V) or 30mA (whichever occurs first); (3)Continuous Current into Any Terminal: ±30mA; (4)Peak Current, NO or COM (pulsed at 1ms, 10% duty cycle): ±100mA.
Features
MAX4053ACEE features: (1)Pin Compatible with Industry-Standard 74HC4051/74HC4052/74HC4053; (2)Guaranteed On-Resistance:; (3)100Ω with ±5V Supplies; (4)Guaranteed Match Between Channels: 6Ω (MAX4051A-MAX4053A); 12Ω (MAX4051-MAX4053); (5)Guaranteed Low Off Leakage Currents: 0.1nA at +25℃ (MAX4051A-MAX4053A) 1nA at +25℃ (MAX4051-MAX4053); (6)Guaranteed Low On Leakage Currents: 0.1nA at +25℃ (MAX4051A-MAX4053A); 1nA at +25℃ (MAX4051-MAX4053); (7)Single-Supply Operation from +2.0V to +16V; Dual-Supply Operation from ±2.7V to ±8V; (8)TTL/CMOS-Logic Compatible, Low Distortion: < 0.04% (600Ω); Low Crosstalk: < -90dB (50Ω); High Off Isolation: < -90dB (50Ω).

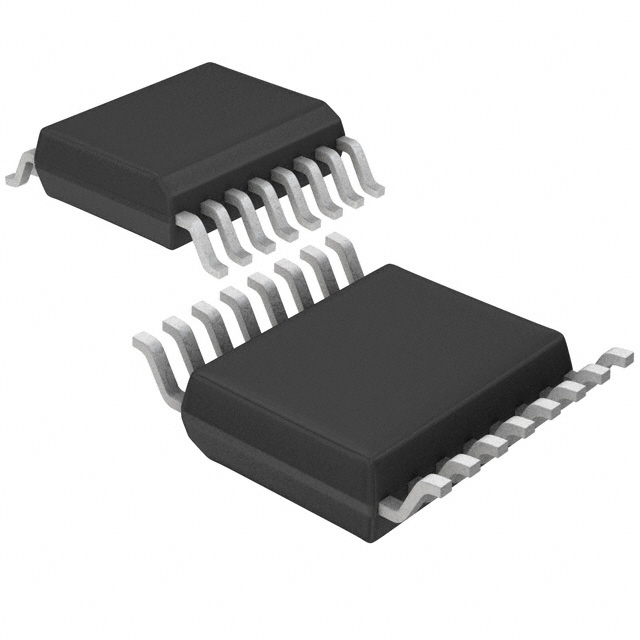

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX4053ACEE-T |
Maxim Integrated Products |
Analog Switch ICs |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX4053ACEE+T |
Maxim Integrated Products |
Analog Switch ICs 3Ch SPDT Analog Switch |
Data Sheet |
|
|
||||||||||||
|
MAX4053ACEE+ |
Maxim Integrated Products |
Analog Switch ICs 3Ch SPDT Analog Switch |
Data Sheet |
|
|
||||||||||||
|
MAX4053ACEE |
Maxim Integrated Products |
Analog Switch ICs |
Data Sheet |
Negotiable |
|
||||||||||||
