Product Summary
The MAX3238EAI is a true RS-232 transceiver achieves a 1μA supply current with Maxim’s revolutionary AutoShutdown Plus feature. When the device does not sense a valid signal transition on either the receiver or transmitter inputs within 30sec, the on-board power supply and drivers shut down. This occurs if the RS-232 cable is disconnected or if the transmitters of the connected peripheral are inactive. The applications of the MAX3238EAI include Notebook, Subnotebook, and Palmtop, Computers, High-Speed Modems, Battery-Powered Equipment, Hand-Held Equipment, Peripherals, Printers.
Parametrics
MAX3238EAI absolute maximum ratings: (1)VCC: -0.3V to +6V; (2)V+: -0.3V to +7V; (3)V-: +0.3V to -7V; (4)V+ + |V-|: +13V; (5)Input Voltages, T_IN, FORCEOFF, FORCEON: -0.3V to +6V; R_IN: ±25V; (6)Output Voltages, T_OUT: ±13.2V; R_OUT, INVALID: -0.3V to (VCC + 0.3V).
Features
MAX3238EAI features: (1)1μA Supply Current Achieved with AutoShutdown Plus; (2)Guaranteed Data Rate: 250kbps; (3)1μA Low-Power Shutdown; (4)Receivers Active in AutoShutdown Plus Mode; (5)Flow-Through Pinout; (6)Meets EIA/TIA-232 Specifications Down to 3.0V; (7)Guaranteed 6V/μs Slew Rate.

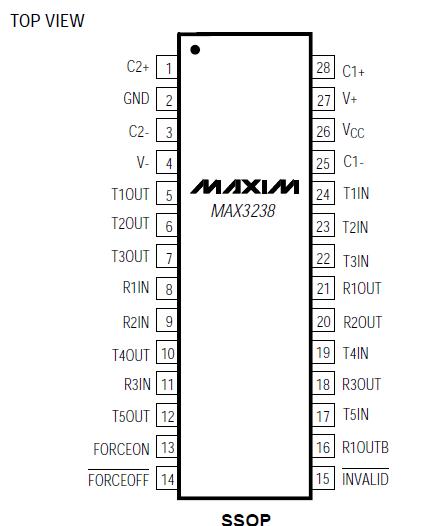

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX3238EAI |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX3238EAI+T |
Maxim Integrated Products |
RS-232 Interface IC 3-5.5V 250kbps Transceiver |
Data Sheet |
|
|
||||||||||||
 |
MAX3238EAI-T |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX3238EAI+ |
Maxim Integrated Products |
RS-232 Interface IC 3-5.5V 250kbps Transceiver |
Data Sheet |
|
|
||||||||||||
