Product Summary

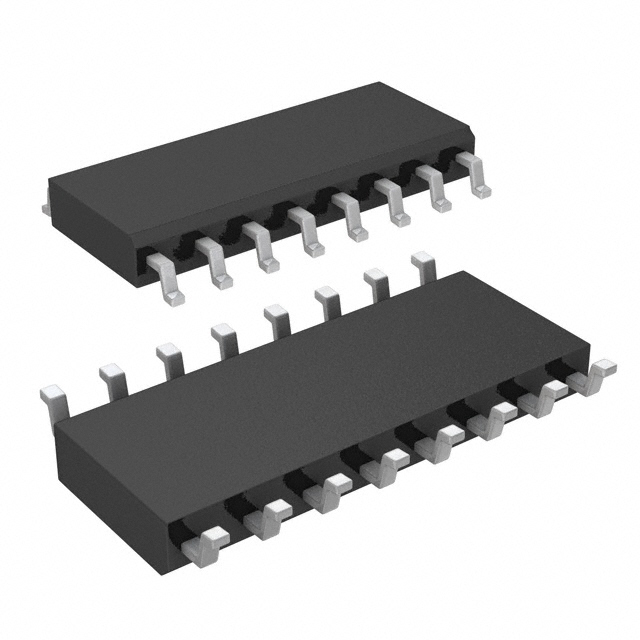

The MAX232ACSE is a line driver/receiver. It is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications where ±12V is not available. The MAX232ACSE is especially useful in battery-powered systems, since its low-power shutdown mode reduces power dissipation to less than 5μW. The MAX232ACSE uses no external components and are recommended for applications where printed circuit board space is critical. The applications of the MAX232ACSE include Portable Computers, Low-Power Modems, Interface Translation, Battery-Powered RS-232 Systems, Multidrop RS-232 Networks.
Parametrics
MAX232ACSE absolute maximum ratings: (1)VCC: -0.3V to +6V; (2)V+: (VCC - 0.3V) to +14V; (3)V- : +0.3V to -14V; (4)Input Voltages: TIN: -0.3V to (VCC - 0.3V), RIN: ±30V, TOUT: ±15V; (5)Output Voltages, TOUT: ±15V, ROUT: -0.3V to (VCC + 0.3V); (6)Driver/Receiver Output Short Circuited to GND: Continuous; (7)Operating Temperature Ranges: 0℃ to +70℃; (8)Storage Temperature Range: -65℃ to +160℃; (9)Lead Temperature (soldering, 10s): +300℃; (10)Soldering Temperature (reflow): +260℃, All other packages containing lead(Pb): +240℃.
Features
MAX232ACSE features: (1)For Low-Voltage, Integrated ESD Applications MAX3222E/MAX3232E/MAX3237E/MAX3241E/MAX3246E: +3.0V to +5.5V, Low-Power, Up to 1Mbps, True RS-232 Transceivers Using Four 0.1μF External Capacitors (MAX3246E Available in a UCSP Package); (2)For Low-Cost Applications MAX221E: ±15kV ESD-Protected, +5V, 1μA, Single RS-232 Transceiver with AutoShutdown.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX232ACSE |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX232ACSE+ |
Maxim Integrated Products |
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver |
Data Sheet |
|
|
||||||||||||
|
MAX232ACSE+T |
Maxim Integrated Products |
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver |
Data Sheet |
|
|
||||||||||||
 |
MAX232ACSE-T |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
