Product Summary

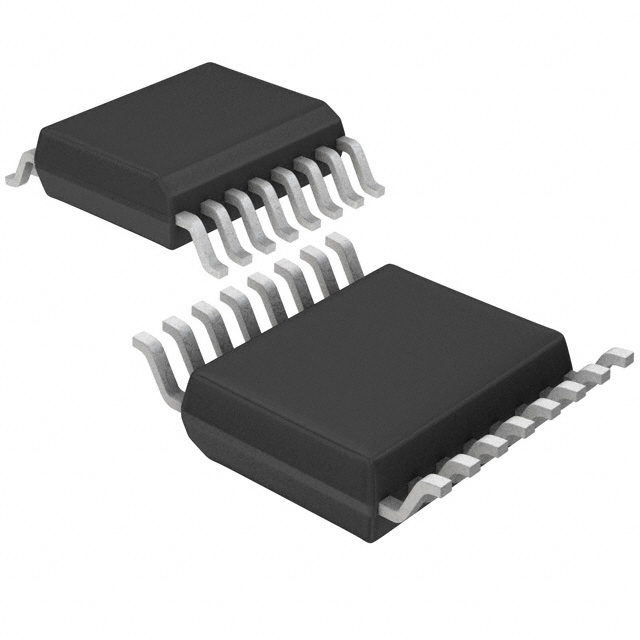

The LTC1660IGN is an Octal 10-Bit DAC integrates eight accurate, serially addressable digital-to-analog converters (DACs) in tiny 16-pin narrow SSOP packages. Each buffered DAC draws just 56mA total supply current, yet is capable of supplying DC output currents in excess of 5mA and reliably driving capacitive loads to 1000pF. Sleep mode further reduces total supply current to 1mA. The applications of the LTC1660IGN include Mobile Communications, Remote Industrial Devices, Automatic Calibration for Manufacturing, Portable Battery-Powered Instruments, Trim/Adjust Applications.
Parametrics
LTC1660IGN absolute maximum ratings: (1)VCC to GND: -0.2V to 7.5V; (2)Logic Inputs to GNDL: -0.2V to 7.5V; (3)VOUT A, VOUT B VOUT H,; (4)REF to GND: -0.2V to (VCC + 0.2V); (5)Maximum Junction Temperature: 125℃; (6)Operating Temperature Range: 0℃ to 70℃; (7)Storage Temperature Range: -65℃ to 150℃; (8)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LTC1660IGN features: (1)Tiny: 8 DACs in the Board Space of an SO-8; (2)Micropower: 56mA per DAC Plus 1mA Sleep Mode for Extended Battery Life; (3)Pin Compatible 8-Bit LTC1665 and 10-Bit LTC1660; (4)Wide 2.7V to 5.5V Supply Range; (5)Rail-to-Rail Voltage Outputs Drive 1000pF; (6)Reference Range Includes Supply for Ratiometric 0V-to-VCC Output; (7)Reference Input Impedance is Constant—Eliminates External Buffer.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC1660IGN#PBF |
|
IC D/A CONV 10BIT OCTAL 16-SSOP |
Data Sheet |
|
|
||||||||||
|
LTC1660IGN#TRPBF |
|
IC D/A CONV 10BIT OCTAL 16-SSOP |
Data Sheet |
|
|
||||||||||
|
LTC1660IGN#TR |
|
IC DAC 10BIT OCTAL MCRPWR 16SSOP |
Data Sheet |
|
|
||||||||||
|
LTC1660IGN |
|
IC D/A CONV 10BIT OCTAL 16-SSOP |
Data Sheet |
|
|
||||||||||
