Product Summary
The LCB110 is a Single Pole OptoMOS Relay which uses optically coupled MOSFET technology to provide 3750V of input to output isolation. The efficient MOSFET switches and photovoltaic die use Clare patented OptoMOS architecture. A highly efficient GaAIAs infrared LED controls the optically coupled input. The LCB110 has low on resistance and is well suited for most applications requiring a normally closed relay. The applications of the include Telecommunications, Instrumentation, Medical Equipment-Patient/Equipment Isolation, Security, Aerospace, Industrial Controls.
Parametrics
LCB110 absolute maximum ratings: (1)Input Power Dissipation: 150 mW; (2)Input Control Current: 50 mA; (3)Peak (10ms): 1 A; (4)Reverse Input Voltage: 5 V; (5)Total Power Dissipation: 800 mW; (6)Isolation Voltage, Input to Output: 3750 VRMS; (7)Operational Temperature: -40 to +85℃; (8)Storage Temperature: -40 to +125℃; (9)Soldering Temperature, DIP Package: +260℃; (10)Surface Mount Package: +220℃(10 Seconds Max).
Features

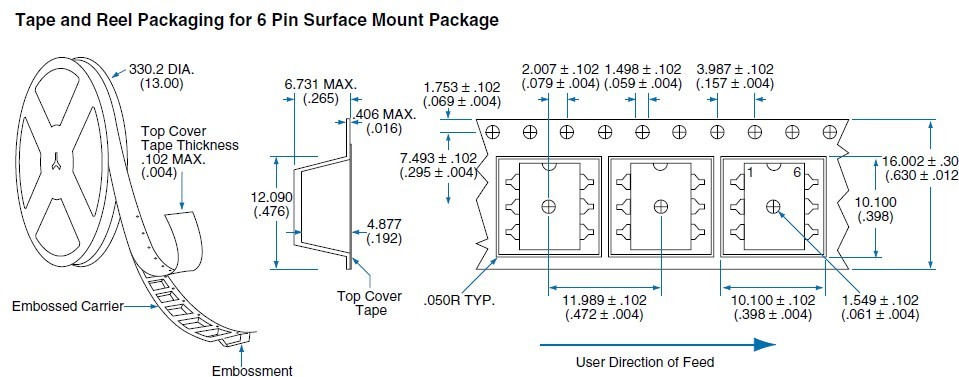

LCB110 features: (1)Small 6 Pin DIP Package; (2)Low Drive Power Requirements (TTL/CMOS Compatible); (3)No Moving Parts; (4)High Reliability; (5)Arc-Free With No Snubbing Circuits; (6)3750VRMS Input/Output Isolation; (7)FCC Compatible; (8)VDE Compatible; (9)No EMI/RFI Generation; (10)Machine Insertable, Wave Solderable; (11)Surface Mount and Tape & Reel Versions Available.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LCB110 |
Clare |
Solid State Relays SPST-NC 6 Pin DIP 350V 120mA |
Data Sheet |
Negotiable |
|
||||
|
LCB110S |
Clare |
Solid State Relays SPST-NC 6 Pin SMT 350V 120mA |
Data Sheet |
Negotiable |
|
||||
|
LCB110STR |
Clare |
Solid State Relays 1-Form-B relay with an optically coupled MOSFET |
Data Sheet |
Negotiable |
|
||||
