Product Summary

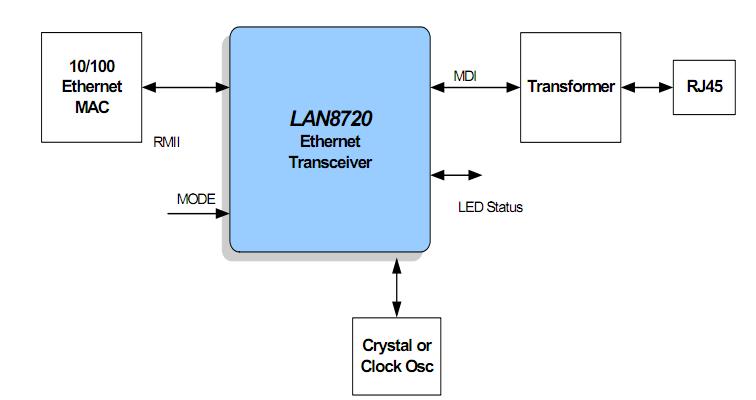

The LAN8720A-CP is a Small Footprint RMII 10/100 Ethernet Transceiver that transmits and receives on unshielded twisted-pair cable. A typical system application. It is available in both extended commercial and industrial temperature operating versions. The applications of the LAN8720A-CP include Set-Top Boxes, Networked Printers and Servers, Test Instrumentation, LAN on Motherboard, Embedded Telecom Applications, Video Record/Playback Systems, Cable Modems/Routers, DSL Modems/Routers, Digital Video Recorders, IP and Video Phones, Wireless Access Points, Digital Televisions, Digital Media Adaptors/Servers, Gaming Consoles, POE Applications.
Parametrics
LAN8720A-CP absolute maximum ratings: (1)VDD1A, VDD2A, VDDIO, Power pins to all other pins: -0.5 +3.6 V; (2)Digital IO, To VSS ground: -0.5 +3.6 V; (3)VSS, VSS to all other pins: -0.5 +0.5 V; (4)Junction to Ambient (θJA), Thermal vias per Layout Guidelines: 59.8℃/W; (5)Junction to Case (θJC): 12.6℃/W; (6)Operating Temperature LAN8720-AEZG: 0 to +85℃; (7)Operating Temperature LAN8720i-AEZG: -40 to +85℃; (8)Storage Temperature: -55 to +150℃.
Features
LAN8720A-CP features: (1)Single-Chip Ethernet Physical Layer Transceiver (PHY); (2)Comprehensive flexPWR Technology , Flexible Power Management Architecture; Power savings of up to 40% compared to competition; LVCMOS Variable I/O voltage range: +1.6V to +3.6V; Integrated 1.2V regulator; (3)HP Auto-MDIX support; (4)Miniature 24 pin QFN lead-free RoHS compliant; (5)package (4 x 4 x 0.85mm height).
Diagrams
