Product Summary
The H5PS1G63EFR-S6C is an 1Gb DDR2 SDRAM.
Parametrics
H5PS1G63EFR-S6C absolute maximum ratings: (1) Voltage on VDD pin relative to Vss Voltage on VDD pin relative to Vss, VDD: -1.0 to 2.3V; (2) Voltage on VDDQ pin relative to Vss, VDDQ: -0.5V ~ 2.3V; (3) Voltage on VDDL pin relative to Vss, VDDL: -0.5 to 2.3V; (4) Voltage on any pin relative to Vss, VIN, VOUT: -0.5V ~ 2.3V; (5) Storage Temperature TSTG: -55 to +100 ° C; (6) Input leakage current; any input 0V VIN VD
all other balls not under test = 0V) II: -2 uA ~ 2 uA; (7) Output leakage current; 0V VOUT VDDQ; DQ
and ODT disabled IOZ: -5uA ~ 5uA.
Features
H5PS1G63EFR-S6C features: (1) VDD=1.8 +/- 0.1V; (2) VDDQ=1.8 +/- 0.1V; (3) All inputs and outputs are compatible with SSTL_18 interface; (4) Fully differential clock inputs (CK, /CK) operation; (5) Double data rate interface; (6) JEDEC standard 84ball FBGA(x16) ; (7) Full strength driver option controlled by EMR; (8) On Die Termination supported; (9) Off Chip Driver Impedance Adjustment supported; (10) Self-Refresh High Temperature Entry.

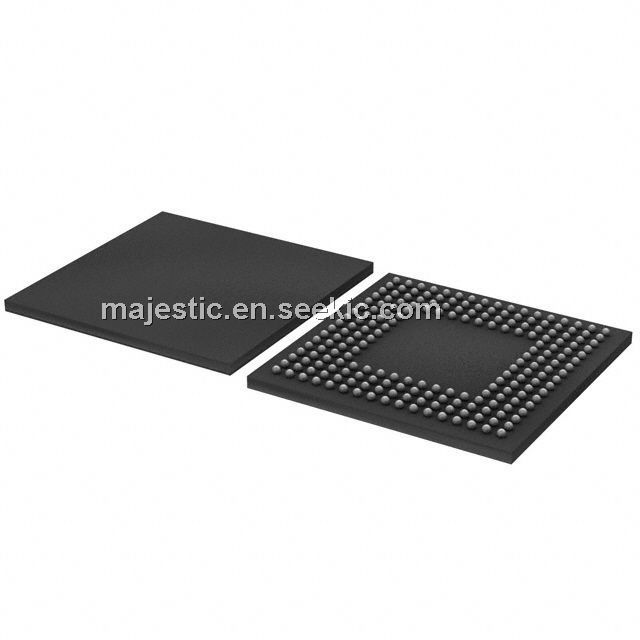

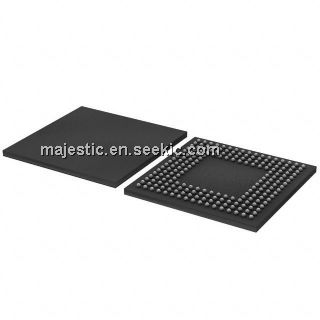

Diagrams
