Product Summary
The FM3560M20X is a 4/5 Bit Multiplexed, 1 Bit Latched Port. The FM3560M20X multiplexes the I-port input signals with two internal non-volatile registers that can be loaded through the serial port. The multiplexer is selected via the serial port and defaults to the I-Port upon power-up. Pull-up resistors are provided on the input port to accommodate connections to open drain outputs and to eliminate the need for external resistors.
Parametrics
FM3560M20X absolute maximum ratings: (1)Supply Voltage (VCC): -0.5V to +6.5V; (2)DC Input Voltage (VI): -0.5V to +6.5V; (3)Output Voltage (VO), Outputs 3-STATED: -0.5V to +6.5V; (4)Outputs Active: -0.5 to VCC +0.5V; (5)DC Input Diode Current (IIK) VI < 0V: -50mA; (6)DC Output Diode Current (IOK), VO < 0V: -50mA; VO > Vcc: +50mA; (7)DC Output Source/Sink Current (IOH/IOL): ±50mA; (8)DC Vcc or Ground Current per, Supply Pin (ICC or Ground): ±100mA; (9)Storage Temperature Range (TSTG): -65℃ to +150℃.
Features
FM3560M20X features: (1)Extended Operating Voltage Range 3.0V-5.5V; (2)IIC Compatible Slave Interface; (3)ESD performance: Human body model > 2000V; (4)Choice of 2.5V outputs or Open-Drain Outputs.

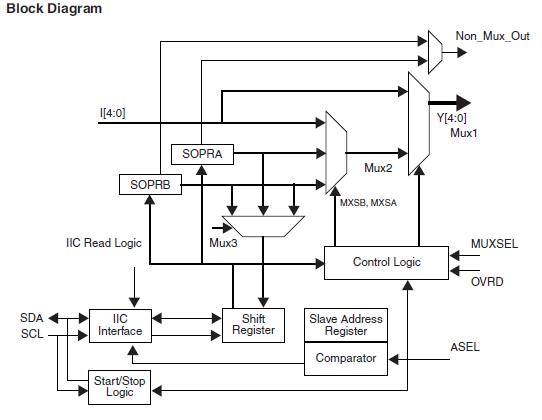

Diagrams

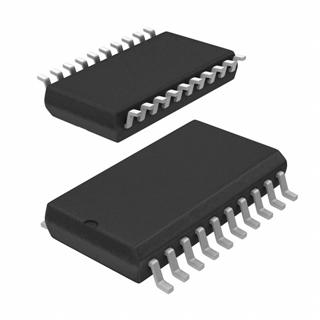

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FM3560M20X |
Fairchild Semiconductor |
Encoders, Decoders, Multiplexers & Demultiplexers 4/5-Bit Multiplexed 1Bit Latched Port |
Data Sheet |
Negotiable |
|
||||||
