FM25V20-DG

Product Summary

The FM25V20-DG is a 2-megabit nonvolatile memory employing an advanced ferroelectric process. A ferroelectric random access memory or F-RAM is nonvolatile and performs reads and writes like a RAM. It provides reliable data retention for 10 years while eliminating the complexities, overhead, and system level reliability problems caused by Serial Flash and other nonvolatile memories. Unlike Serial Flash, the FM25V20-DG performs write operations at bus speed. No write delays are incurred. Data is written to the memory array immediately after it has been transferred to the device. The next bus cycle may commence without the need for data polling.

Parametrics

FM25V20-DG absolute maximum ratings: (1)VDD, Power Supply Voltage with respect to VSS: -1.0V to +4.5V; (2)VIN, Voltage on any pin with respect to VSS: -1.0V to +4.5V; (3)and VIN < VDD+1.0V; (4)TSTG, Storage Temperature: -55℃ to + 125℃; (5)TLEAD, Lead Temperature (Soldering, 10 seconds): 260℃; (6)VESD, Electrostatic Discharge Voltage, Human Body Model (JEDEC Std JESD22-A114-B): 4kV; Charged Device Model (JEDEC Std JESD22-C101-A): 1.25kV; Machine Model (JEDEC Std JESD22-A115-A): 250V; (7)Package Moisture Sensitivity Level: MSL-1.

Features

FM25V20-DG features: (1)2M bit Ferroelectric Nonvolatile RAM, Organized as 256K x 8 bits; High Endurance 100 Trillion (1014) Read/Writes; 10 Year Data Retention; NoDelay. Writes; Advanced High-Reliability Ferroelectric Process; (2)Very Fast Serial Peripheral Interface - SPI, Up to 40 MHz Frequency; Direct Hardware Replacement for Serial Flash; SPI Mode 0 & 3 (CPOL, CPHA=0,0 & 1,1); (3)Write Protection Scheme, Hardware Protection; Software Protection; (4)Device ID, Device ID reads out Manufacturer ID & Part ID Low Voltage, Low Power; Low Voltage Operation 2.0V-3.6V; 100 μA Standby Current (typ.); 3 μA Sleep Mode Current (typ.); (5)Industry Standard Configurations, Industrial Temperature -40℃ to +85℃; 8-pin "Green"/RoHS EIAJ SOIC Package; 8-pin "Green"/RoHS TDFN Package; 8-pin "Green"/POHS PDIP Package.

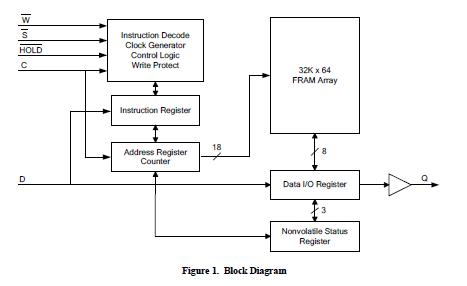

Diagrams
