Product Summary
The FDMS7692 is an N-Channel MOSFET designed specifically to improve the overall efficiency and to minimize switch node ringing of DC/DC converters using either synchronous or conventional switching PWM controllers. The FDMS7692 has been optimized for low gate charge, low rDS(on), fast switching speed and body diode reverse recovery performance. The applications of the FDMS7692 include IMVP Vcore Switching for Notebook, VRM Vcore Switching for Desktop and Server, OringFET / Load Switch, DC-DC Conversion.
Parametrics
FDMS7692 absolute maximum ratings: (1)VDS, Drain to Source Voltage: 30 V; (2)VGS, Gate to Source Voltage: ±20 V; (3)ID, Drain Current -Continuous (Package limited) TC = 25℃, 28A; Continuous (Silicon limited) TC = 25℃: 45A; Continuous TA = 25℃ (Note 1a): 13.5A; Pulsed: 50A; (4)EAS, Single Pulse Avalanche Energy (Note 3): 21 mJ; (5)PD, Power Dissipation TC = 25℃ 27W; Power Dissipation TA = 25℃ (Note 1a): 2.5W; (6)TJ, TSTG, Operating and Storage Junction Temperature Range: -55 to +150℃.
Features
FDMS7692 features: (1)Max rDS(on) = 8 mΩ at VGS = 10 V, ID = 13 A; (2)Max rDS(on) = 14 mΩ at VGS = 4.5 V, ID = 10 A; (3)Advanced Package and Silicon combination for low rDS(on) and high efficiency; (4)Next generation enhanced body diode technology, engineered for soft recovery.; (5)MSL1 robust package design; (6)100% UIL tested; (7)RoHS Compliant.

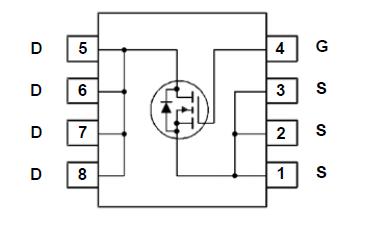

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FDMS7692 |
Fairchild Semiconductor |
MOSFET PT7 30/20V Nch PowerTrench |
Data Sheet |
|
|
||||||||||||
|
FDMS7692A |
Fairchild Semiconductor |
MOSFET PT7 30/20V Nch PowerTrench |
Data Sheet |
|
|
||||||||||||
