Product Summary
The EPM7128SQC100-15N is a high-density, high-performance PLD. It is based on Altera’s second-generation MAX architecture.
Parametrics
EPM7128SQC100-15N absolute maximum ratings: (1)Supply voltage With respect to ground: –2.0V to 7.0V; (2)DC input voltage: –2.0V to 7.0V; (3)DC output current, per pin: –25mA to 25 mA; (4)Storage temperature: –65℃ to 150℃; (5)Ambient temperature: –65℃ to 135℃; (6)Junction temperature: 150℃ or 135℃.
Features
EPM7128SQC100-15N features: (1)Open-drain output option in MAX 7000S devices; (2)Programmable macrocell flipflops with individual clear, preset,clock, and clock enable controls; (3)Programmable power-saving mode for a reduction of over 50% in each macrocell; (4)Configurable expander product-term distribution, allowing up to 32 product terms per macrocell; (5)Includes 5.0-V MAX 7000 devices and 5.0-V ISP-based MAX 7000S devices; (6)Built-in JTAG boundary-scan test (BST) circuitry in MAX 7000S devices with 128 or more macrocells; (7)Complete EPLD family with logic densities ranging from 600 to 5,000 usable gates; (8)5-ns pin-to-pin logic delays with up to 175.4-MHz counter frequencies (including interconnect); (9)PCI-compliant devices available.

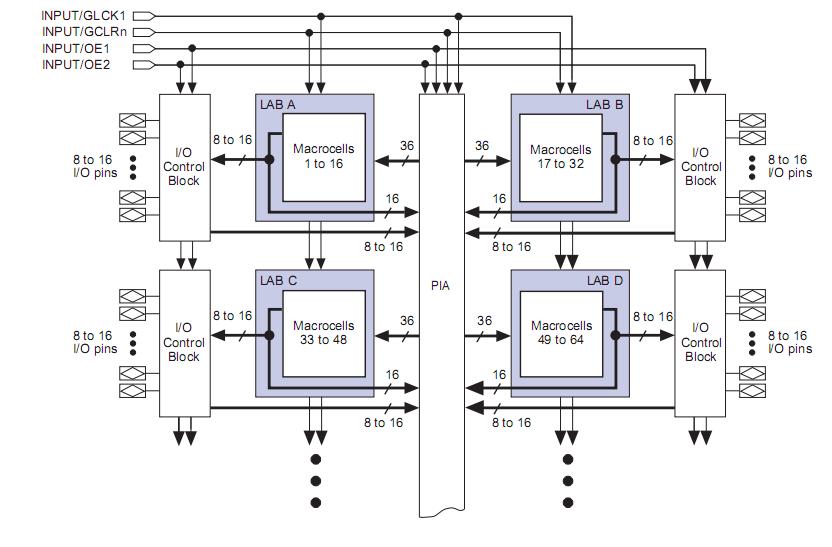

Diagrams
