Product Summary
The DS12887A real time clock plus RAM is designed to be a direct replacement for the DS1287A. The DS12887A is identical in form, fit, and function to the DS1287A, and includes additional 64 bytes of general-purpose RAM. Access to this additional RAM space is determined by the logic level presented on AD6 during the address portion of an access cycle.
Parametrics
DS12887A absolute maximum ratings: (1)Voltage Range on VCC Pin Relative to Ground: -0.3V to +6.0V; (2)Operating Temperature Range, Commercial (noncondensing): 0℃ to +70℃; (3)Operating Temperature Range, Industrial (noncondensing): -40℃ to +85℃; (4)Storage Temperature Range, EDIP: -40℃ to +85℃; PDIP, SO, PLCC, TQFP: -55℃ to +125℃; (5)Lead Temperature (soldering, 10s): +260℃; (6)Soldering Temperature (reflow), PDIP, SO, PLCC: +260℃; TQFP: +245℃.
Features
DS12887A features: (1)Drop-in replacement for IBM AT computer clock/calendar; (2)Pin compatible with the MC146818B and DS1287A; (3)Totally nonvolatile with over 10 years of operation in the absence of power; (4)Self-contained subsystem includes lithium, quartz, and support circuitry; (5)Counts seconds, minutes, hours, days, day of the week, date, month, and year with leapyear compensation valid up to 2100; (6)Binary or BCD representation of time, calendar, and alarm; (7)12-hour or 24-hour clock with AM and PM in 12-hour mode; (8)Daylight Savings Time option; (9)Selectable between Motorola and Intel bus timing; (10)Multiplex bus for pin efficiency; (11)Interfaced with software as 128 RAM locations: 14 bytes of clock and control registers; 114 bytes of general-purpose RAM; (12)Programmable square-wave output signal; (13)Bus compatible interrupt signals (IRQ); (14)Three interrupts are separately software maskable and testable, Time-of-day alarm once/second to once/day; (15)Underwriters Laboratory (UL) recognized.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

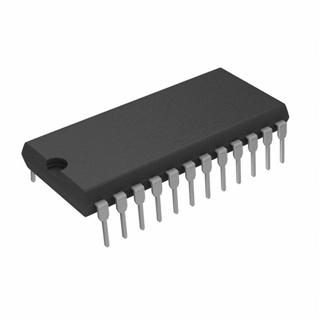

 DS12887A |
Maxim Integrated Products |
Real Time Clock |
Data Sheet |
Negotiable |
|
||||||||||||
 |
DS12887A+ |
Maxim Integrated Products |
Real Time Clock RTC |
Data Sheet |
|
|
||||||||||||
