AT91SAM9XE512-CU

Product Summary

The AT91SAM9XE512-CU is an AT91 ARM Thumb Microcontroller. The AT91SAM9XE512-CU is based on the integration of an ARM926EJ-S processor with fast ROM and RAM, 128, 256 or 512 Kbytes of Flash and a wide range of peripherals. The embedded Flash memory can be programmed in-system via the JTAG-ICE interface or via a parallel interface on a production programmer prior to mounting. Built-in lock bits and a security bit protect the firmware from accidental overwrite and preserves its confidentiality. The AT91SAM9XE512-CU embeds an Ethernet MAC, one USB Device Port, and a USB Host Controller. It also integrates several standard peripherals, like USART, SPI, TWI, Timer Counters, Synchronous Serial Controller, ADC and a MultiMedia Card Interface.

Features

AT91SAM9XE512-CU features: (1)Incorporates the ARM926EJ-S ARM Thumb Processor, DSP instruction Extensions, ARM Jazelle Technology for Java Acceleration; 8 Kbyte Data Cache, 16 Kbyte Instruction Cache, Write Buffer; 200 MIPS at 180 MHz; Memory Management Unit; EmbeddedICE Debug Communication Channel Support; (2)Additional Embedded Memories, One 32 Kbyte Internal ROM, Single-cycle Access at Maximum Matrix Speed; One 32 Kbyte (for AT91SAM9XE256 and AT91SAM9XE512) or 16 Kbyte (for AT91SAM9XE128) Internal SRAM, Single-cycle Access at Maximum Matrix Speed; 128, 256 or 512 Kbytes of Internal High-speed Flash for AT91SAM9XE128, AT91SAM9XE256 or AT91SAM9XE512 Respectively. Organized in 256, 512 or 1024 Pages of 512 Bytes Respectively, 128-bit Wide Access; Fast Read Time: 60 ns; Page Programming Time: 4 ms, Including Page Auto-erase, Full Erase Time: 10 ms; 10,000 Write Cycles, 10 Years Data Retention, Page Lock Capabilities, Flash Security Bit; (3)Enhanced Embedded Flash Controller (EEFC), Interface of the Flash Block with the 32-bit Internal Bus; Increases Performance in ARM and Thumb Mode with 128-bit Wide Memory Interface; (4)External Bus Interface (EBI), Supports SDRAM, Static Memory, ECC-enabled NAND Flash and CompactFlash USB 2.0 Full Speed (12 Mbits per second) Device Port, On-chip Transceiver, 2,688-byte Configurable Integrated DPRAM; (5)USB 2.0 Full Speed (12 Mbits per second) Host Single Port in the 208-pin PQFP Device and Double Port in 217-ball LFBGA Device, Single or Dual On-chip Transceivers; Integrated FIFOs and Dedicated DMA Channels.

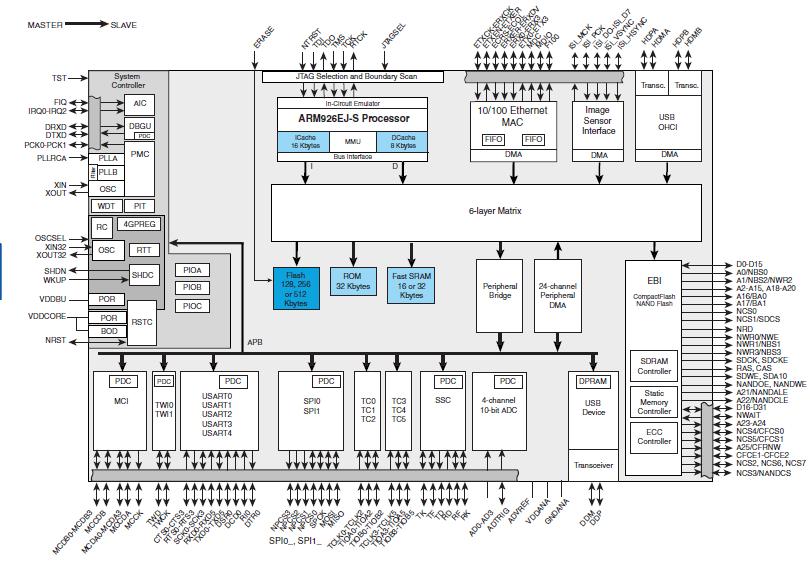

Diagrams
