Product Summary
The AT45DB081D-SU is a 2.5V or 2.7V, serial-interface Flash memory ideallysuited for a wide variety of digital voice-, image-, program code- and data-storage applications. The AT45DB081D-SU supports RapidS serial interface for applications requiring very high speed operations. The AT45DB081D-SU also contains two SRAM buffersof 256/264 bytes each.
Parametrics
AT45DB081D-SU absolute maximum ratings: (1) Temperature under Bias: -55 to +125°C; (2) Storage Temperature: -65 to +150°C; (3) All Input Voltages (including NC Pins) with Respect to Ground: -0.6 to +6.25V; (4) All Output Voltages with Respect to Ground: -0.6 to Vcc +0.6V.
Features
AT45DB081D-SU features: (1) Single 2.5V or 2.7V to 3.6V Supply; (2) Rapids Serial Interface: 66 MHz Maximum Clock Frequency; (3) Page Program Operation; (4) Continuous Read Capability through Entire Array; (5) Low-power Dissipation; (6) Hardware and Software Data Protection Features; (7) Sector Lockdown for Secure Code and Data Storage; (8) JEDEC Standard Manufacturer and Device ID Read; (9) 100,000 Program/Erase Cycles Per Page Minimum; (10) Green (Pb/Halide-free/RoHS Compliant) Packaging Options.

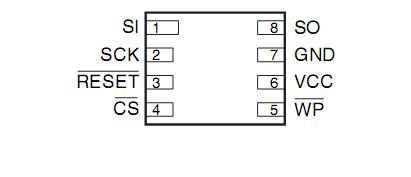

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT45DB081D-SU |
Atmel |
Flash 8MB Serial Ind. Temp |
Data Sheet |
|
|
||||||||||||
|
AT45DB081D-SU-2.5 |
Atmel |
Flash 8MB SERIAL 2.5V - IND TEMP |
Data Sheet |
|
|
||||||||||||
