Product Summary
The ADXL345BCCZ is a small, thin, low power, three-axis accelerometer with high resolution (13-bit) measurement up to ±16g. The ADXL345BCCZ is well suited for mobile device applications. Applications of the ADXL345BCCZ include: handsets, gaming and pointing devices, personal navigation devices, HDD protection, fitness equipment and digital cameras.
Parametrics
ADXL345BCCZ absolute maximum ratings: (1) Acceleration (Any Axis, Unpowered) : 10000g; (2) Vs: -0.3 to 3.6V; (3) VDD I/O: -0.3 to 3.6V; (4) All other pins: -0.3 to 3.6V; (5) Iutput short-circuit Duration (Any Pin to Ground) : Indefinite; (6) Temperature Range (Powered) : -40 to +105°C; (7) Temperature Range (Storage) : -40 to +105°C.
Features
ADXL345BCCZ features: (1) Ultra low power: 25 to 30μA at Vs=2.5V (typ) ; (2) Power consumption scales automatically with bandwidth User selectable fixed 10-bit resolution or 4mg/LSB scale factor in all g-ranges, up to 13-bit resolution at ±16g 32 level out[ut data FIFO minimizes host processor load built in motion detection functions; (3) Tap/Double tap detection; (4) supply and I/O voltage range: 1.8 to 3.6V; (5) measurement ranges selectable via serial command; (6) wide temperature range: -40 to +85°C; (7) Pb free/RoHS complaint; (8) Small and thin: 3×5×1mm LGA package.

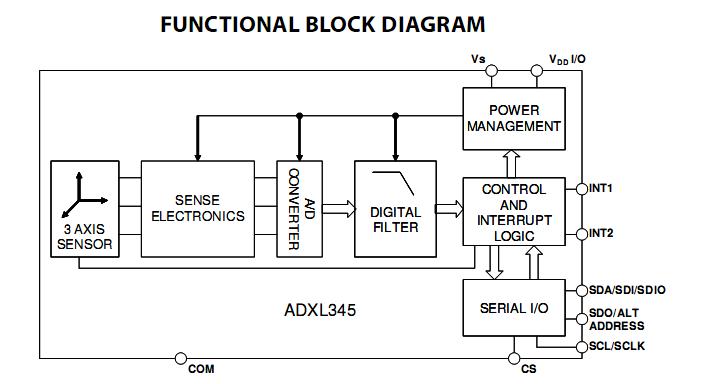

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADXL345BCCZ |
|
IC ACCEL SPI/I2C 3AX 3G 14LGA |
Data Sheet |
|
|
||||||||||||||||
|
ADXL345BCCZ-RL |
|
IC ACCEL SPI/I2C 3AX 3G 14LGA |
Data Sheet |
|
|
||||||||||||||||
|
ADXL345BCCZ-RL7 |
|
IC ACCEL SPI/I2C 3AX 14LGA |
Data Sheet |
|
|
||||||||||||||||
