ADV7611BSWZ-P

Product Summary

The ADV7611BSWZ-P is offered in automotive, professional (no HDCP), and industrial versions. The operating temperature range is -40℃ to +85℃. The UG-180 contains critical information that must be used in conjunction with the device. The ADV7611BSWZ-P is a high quality, single input HDMI capable receiver. It incorporates an HDMI-capable receiver that supports all mandatory 3D TV defined in HDMI 1.4a. The ADV7611BSWZ-P supports formats up to UXGA 60 Hz at 8 bit. It integrates a CEC controller that supports the capability discovery and control (CDC) feature. The applications of the ADV7611BSWZ-P include Projectors, Automotive, Video conferencing, HDTVs, AVR, HTiB, Soundbars, Video switches.

Parametrics

ADV7611BSWZ-P absolute maximum ratings: (1)DVDD to GND: 2.2 V; (2)PVDD to GND: 2.2 V; (3)DVDDIO to GND: 4.0 V; (4)CVDD to GND: 2.2 V; (5)TVDD to GND: 4.0 V; (6)Digital Inputs Voltage to GND: GND -0.3 V to DVDDIO +0.3 V; (7)5 V Tolerant Digital Inputs to GND1: 5.3 V; (8)Digital Outputs Voltage to GND: GND -0.3 V to DVDDIO +0.3 V; (9)XTALP, XTALN: GND -0.3 V to PVDD + 0.3 V; (10)SCL/SDA Data Pins to DVDDIO: DVDDIO -0.3 V to DVDDIO + 3.6 V; (11)Maximum Junction Temperature (TJ MAX): 125℃; (12)Storage Temperature Range: -60℃ to +150℃; (13)Infrared Reflow Soldering (20 sec): 260℃.

Features

ADV7611BSWZ-P features: (1)High-Definition Multimedia Interface (HDMI? 1.4a features supported, All mandatory and additional 3D video formats supported; Extended colorimetry, including sYCC601, Adobe RGB,; Adobe YCC 601, xvYCC extended gamut color; CEC 1.4-compatible; (2)HDMI receiver, 165 MHz maximum TMDS clock frequency; 24-bit output pixel bus; High-bandwidth Digital Content Protection (HDCP) 1.4 support with internal HDCP keys; HDCP repeater support Up to 127 KSVs supported; Integrated CEC controller; Programmable HDMI equalizer; 5 V detect and Hot Plug assert for HDMI port; (3)Audio support, SPDIF (IEC 60958-compatible) digital audio; HDMI audio extraction support; Advanced audio mute feature; (4)General, Interrupt controller with two interrupt outputs; Standard identification (STDI) circuit; Highly flexible 24-bit pixel output interface; Internal EDID RAM; Any-to-any 3 ?3 color space conversion (CSC) matrix; 2-layer PCB design supported; (5)64-lead LQFP_EP, 10 mm × 10 mm package; (6)Qualified for automotive applications.

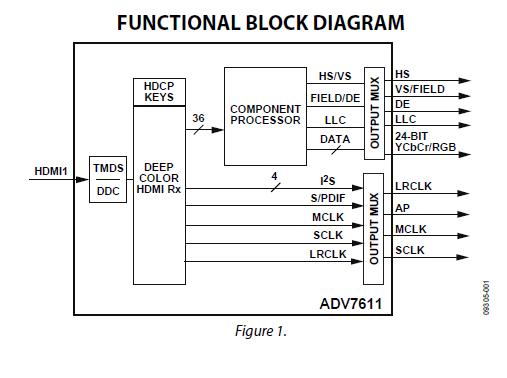

Diagrams
