Product Summary
The AD9878BST is a single-supply, cable modem/set-top box, mixed-signal front end. The AD9878BST contains a transmit path interpolation filter, a complete quadrature digital upconverter, and a transmit DAC. The receive path contains dual 12-bit ADCs and a 10-bit ADC. All internally required clocks and an output system clock are generated by the phase-locked loop (PLL) from a single crystal oscillator or clock input. The applications of the AD9878BST include Cable set-top boxes and Cable and wireless modems.
Parametrics
AD9878BST absolute maximum ratings: (1)Power Supply (VAVDD, VDVDD, VDRVDD): 3.9 V; (2)Digital Output Current: 5 mA; (3)Digital Inputs: -0.3 V to VDRVDD + 0.3 V; (4)Analog Inputs: -0.3 V to VAVDD + 0.3 V; (5)Operating Temperature: -40℃ to +85℃; (6)Maximum Junction Temperature: 150℃; (7)Storage Temperature: -65℃ to +150℃; (8)Lead Temperature (Soldering, 10 sec): 300℃.
Features
AD9878BST features: (1)Low cost 3.3 V CMOS MxFE for broadband applications; (2)DOCSIS, EURO-DOCSIS, DVB, DAVIC compliant; (3)232 MHz quadrature digital upconverter; (4)12-bit direct IF DAC (TxDAC+); (5)Up to 65 MHz carrier frequency DDS; (6)Programmable sampling clock rates; (7)Analog Tx output level adjust; (8)Dual 12-bit, 29 MSPS direct IF ADCs with video clamp input; (9)10-bit, 29 MSPS sampling ADC; (10)8-bit ∑-△auxiliary DAC; (11)Direct interface to AD832x family of PGA cable drivers.

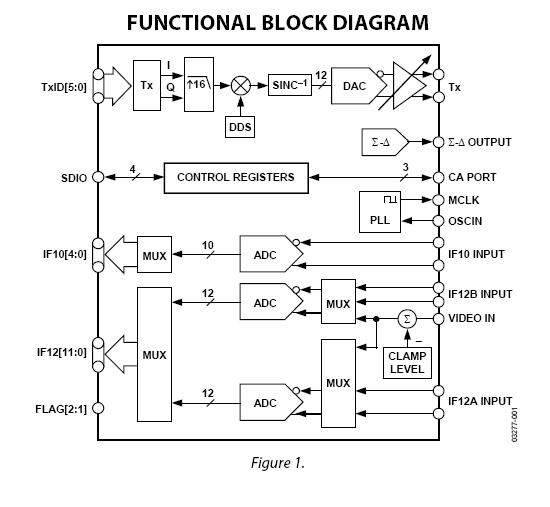

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD9878BST |
Analog Devices Inc |
IC FRONT-END MIXED-SGNL 100-LQFP |
Data Sheet |
Negotiable |
|
||||
|
AD9878BSTRL |
Analog Devices Inc |
IC FRONT-END MIXED-SGNL 100-LQFP |
Data Sheet |
Negotiable |
|
||||
 |
AD9878BSTZ |
|
IC FRONT-END MIXED-SGNL 100-LQFP |
Data Sheet |
Negotiable |
|
||||
