Product Summary
The AD590LH883B is a 2-terminal integrated circuit temperature transducer that produces an output current proportional to absolute temperature. The AD590LH883B should be used in any temperature-sensing application below 150℃ in which conventional electrical temperature sensors are currently employed.
Parametrics
AD590LH883B absolute maximum ratings: (1)Forward Voltage ( E+ or E–): 44 V; (2)Reverse Voltage (E+ to E–): -20 V; (3)Breakdown Voltage (Case E+ or E–): ±200 V; (4)Rated Performance Temperature Range: -55℃ to +150℃; (5)Storage Temperature Range: -65℃ to +155℃; (6)Lead Temperature (Soldering, 10 sec): 300℃.
Features
AD590LH883B features: (1)Linear current output: 1 μA/K; (2)Wide temperature range: -55℃ to +150℃; (3)Probe compatible ceramic sensor package; (4)2-terminal device: voltage in/current out; (5)Wide power supply range: 4 V to 30 V; (6)Sensor isolation from case; (7)Low cost.

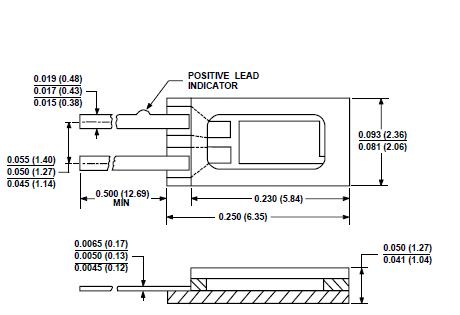

Diagrams
