Product Summary

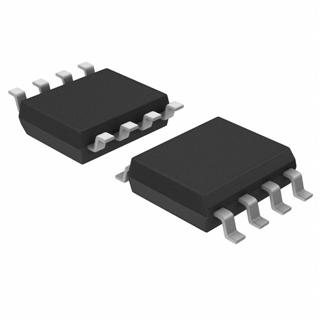

The TPA122DR is a stereo audio power amplifier packaged in either an 8-pin SOIC, or an 8-pin PowerPAD MSOP package capable of delivering 150 mW of continuous RMS power per channel into loads. Amplifier gain is externally configured by means of two resistors per input channel and does not require external compensation for settings of 1 to 10. THD+N when driving an 8-W load from 5 V is 0.1% at 1 kHz, and less than 2% across the audio band of 20, PowerPAD MSOP Hz to 20 kHz. For 32-W loads, the TPA122DR is reduced to less than 0.06% at 1 kHz, and is less than 1% across the audio band of 20 Hz to 20 kHz. For 10-kΩ loads, the THD+N performance is 0.01% at 1 kHz, and less than 0.02% across the audio band of 20 Hz to 20 kHz.

Parametrics

TPA122DR absolute maximum ratings: (1)VDD, Supply voltage: 6 V; (2)VI, Input voltage: -0.3 V to VDD + 0.3 V; (3)Continuous total power dissipation: Internally limited; (4)TJ, Operating junction temperature range: -40℃ to 150℃; (5)Tstg, Storage temperature range: -65℃ to 150℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

TPA122DR features: (1)150-mW Stereo Output; (2)PC Power Supply Compatible, Fully Specified for 3.3-V and 5-V Operation; Operation to 2.5 V 8-W; (3)Pop Reduction Circuitry; (4)Internal Midrail Generation; (5)Thermal and Short-Circuit Protection; (6)Surface-Mount Packaging; SOIC; (7)Pin Compatible With LM4880 and LM4881 (SOIC).

Diagrams

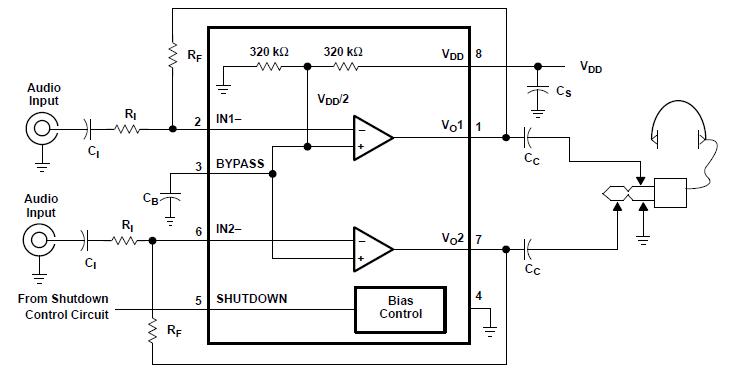

TPA122DR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

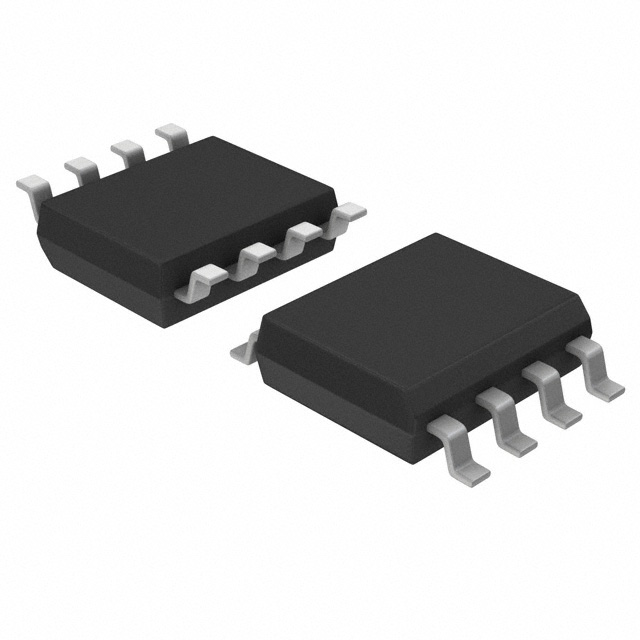

TPA122DR
TPA122DR

Texas Instruments

Audio Amplifiers 150mW Stereo

Data Sheet

0-2000: $0.28
2000-2500: $0.28
2500-10000: $0.27
TPA122DRG4
TPA122DRG4

Texas Instruments

Audio Amplifiers 150mW Stereo

Data Sheet

0-1950: $0.28
1950-2000: $0.28
2000-2500: $0.28
2500-5000: $0.27
