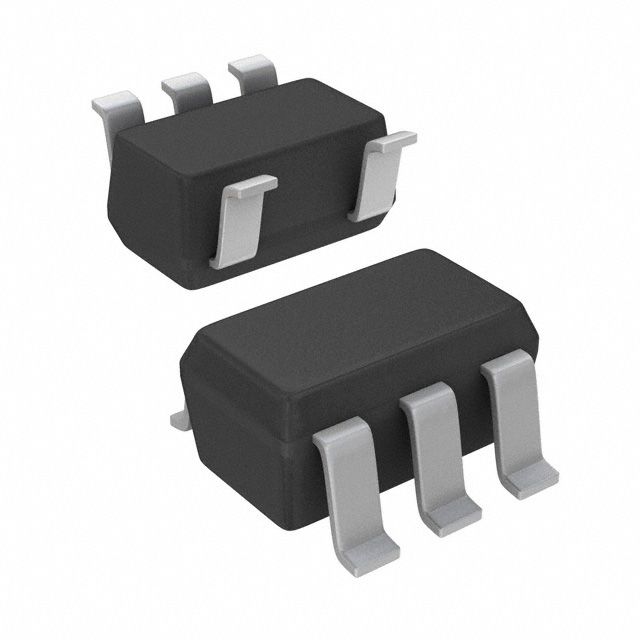

Product Summary
The SN74LVC1G04DBVR is a single inverter gate designed for 1.65-V to 5.5-V VCC operation. The SN74LVC1G04DBVR performs the Boolean function Y = A. NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
Parametrics
SN74LVC1G04DBVR absolute maximum ratings: (1)VCC, Supply voltage range: -0.5 to 6.5 V; (2)VI, Input voltage range: -0.5 to 6.5 V; (3)VO, Voltage range applied to any output in the high-impedance or power-off state: -0.5 to 6.5 V; (4)VO, Voltage range applied to any output in the high or low state: -0.5 VCC + 0.5 V; (5)IIK, Input clamp current, VI < 0: -50 mA; (6)IOK, Output clamp current, VO < 0: -50 mA; (7)IO, Continuous output current: ±50 mA; (8)Continuous current through, VCC or GND: ±100 mA; (9)Tstg, Storage temperature range: -65 to 150℃.
Features
SN74LVC1G04DBVR features: (1)Available in the Texas Instruments NanoFree Package; (2)±24-mA Output Drive at 3.3 V; (3)Ioff Supports Partial-Power-Down Mode; (4)Supports 5-V VCC Operation Operation; (5)Inputs Accept Voltages to 5.5 V; (6)Latch-Up Performance Exceeds 100 mA Per; (7)Max t JESD 78, Class II pd of 3.3 ns at 3.3 V; (8)Low Power Consumption, 10-mA Max ICC; (9)ESD Protection Exceeds JESD 22, 2000-V Human-Body Model (A114-A); 200-V Machine Model (A115-A); 1000-V Charged-Device Model (C101).

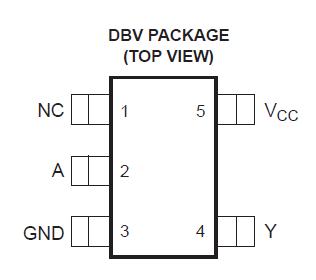

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SN74LVC1G04DBVR |
Texas Instruments |
Inverters Single |
Data Sheet |
|
|
|||||||||||||
SN74LVC1G04DBVRE4 |
Texas Instruments |
Inverters Low-Voltage Dual Mltplxr/Demltplxr |
Data Sheet |
|
|
|||||||||||||
SN74LVC1G04DBVRG4 |
Texas Instruments |
Inverters Low-Voltage Dual Mltplxr/Demltplxr |
Data Sheet |
|
|
