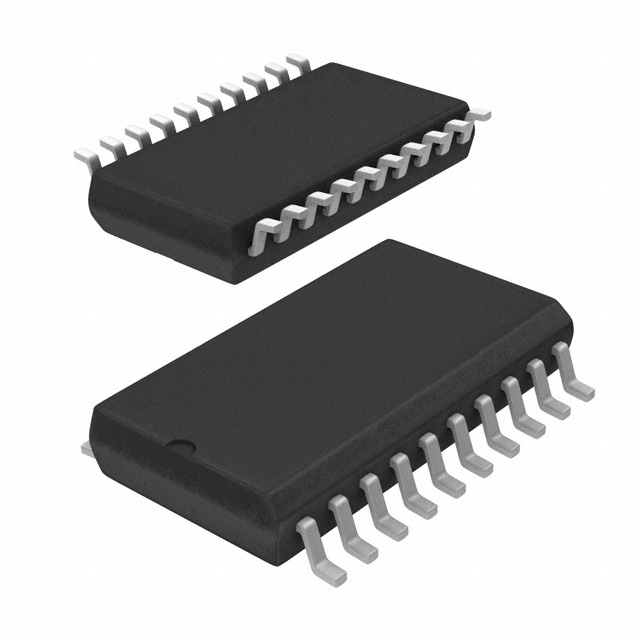

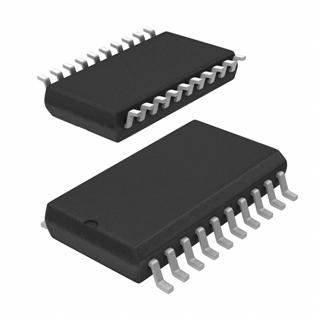

The SN74ABT377ANSR is an 8-bit positive-edge-triggered D-type flip-flop with a clock (CLK) input. The SN74ABT377ANSR is particularly suitable for implementing buffer and storage registers, shift registers, and pattern generators. Data (D) input information that meets the setup time requirements is transferred to the Q outputs on the positive-going edge of the clock pulse if the common clock-enable (CLKEN) input is low.
Parametrics
SN74ABT377ANSR absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 7 V; (2)Input voltage range, VI: -0.5 V to 7 V; (3)Voltage range applied to any output in the high state or power-off state, VO: -0.5 V to 5.5 V; (4)Current into any output in the low state, IO: SN74ABT377: 128 mA; (5)Input clamp current, IIK (VI < 0): -18 mA; (6)Output clamp current, IOK (VO < 0): -50 mA; (7)Maximum power dissipation at TA = 55℃ (in still air): DB package: 0.6 W; DW package: 1.6 W; N package: 1.3 W; (8)Storage temperature range: -65℃ to 150℃.
Features
SN74ABT377ANSR features: (1)State-of-the-Art EPIC-IIBE BiCMOS Design Significantly Reduces Power Dissipation; (2)Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD-17; (3)Typical VOLP (Output Ground Bounce) < 1 V at VCC = 5 V, TA = 25℃; (4)High-Drive Outputs (-32-mA IOH, 64-mA IOL); (5)Package Options Include Plastic Small-Outline (DW) and Shrink Small-Outline (DB) Packages, Ceramic Chip Carriers (FK), and Plastic (N) and Ceramic (J) DIPs.

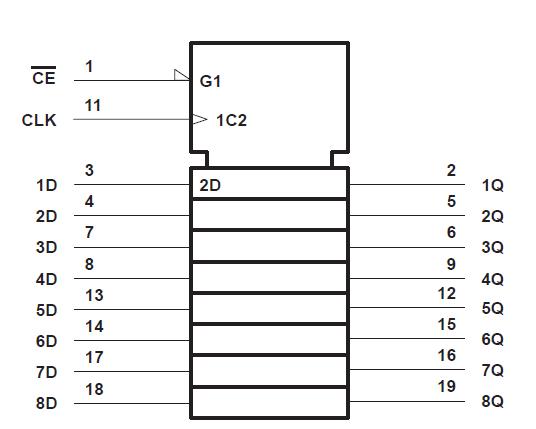

Diagrams
