Product Summary
The PQ7RV4 is a Variable Output (1.5 to 7V), 4.6A Output Low Power-loss Voltage Regulator. The applications of the PQ7RV4 include Power supplies for various electronic equipment such as personal computers.
Parametrics
PQ7RV4 absolute maximum ratings: (1)Input voltage, VIN: 10V; (2)ON/OFF control terminal voltage, VADJ: 5V; (3)Output current, IO: 4.6A; (4)Power dissipation, PD1: 1.8W; PD2: 18W; (5)Junction temperature, TJ: 150℃; (6)Operating temperature, Topr: -20 to +80℃; (7)Storage temperature, Tstg: -40 to +150℃; (8)Soldering temperature, Tsol: 260℃.
Features
PQ7RV4 features: (1)Low power-loss, (Dropout voltage: MAX.0.5V at Io=4.0A); (Dropout voltage: MAX.1.0V at Io=4.6A); (2)TO-220 package; (3)1.5V to 7V/4.6A output type; (4)Low operating voltage (Minimum operating voltage:3.0V); (5)High-precision reference voltage type Reference voltage precision: ±2.0%; (6)Built-in ON/OFF control function; (7)Built-in overcurrent protection, overheat protection function.

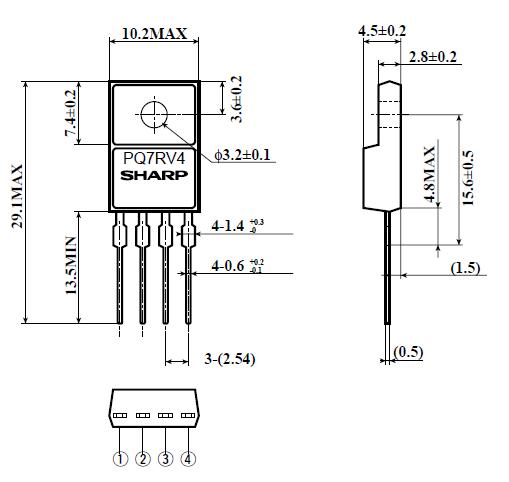

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PQ7RV4J0000H |
Sharp Microelectronics |
Low Dropout (LDO) Regulators LDO 1.5V to 7.0V 4A |
Data Sheet |
Negotiable |
|
||||
 |
PQ7RV4 |
|
IC REG LDO ADJ 4.6A TO-220 |
Data Sheet |
Negotiable |
|
||||
