Product Summary
The PC942 is a High Power Output Type OPIC Photocoupler. The applications of the PC942 include Inverter controlled air conditioners, Small capacitance general purpose inverters.
Parametrics
PC942 absolute maximum ratings: (1)Input, Forward current, IF: 25 mA; Reverse voltage, VR: 6V; (2)Output, Supply voltage, Vcc: 18V; O1output current, IO1: 0.5A; O1 peak output current, IO1P: 1.0A; O2 output current, IO2: 0.6A; O2 peak output current, IO2P: 2.0A; O1 output voltage, VO1: 18V; Power dissipation, PO: 500 mW; (3)Total power dissipation, PTOT: 550 mW; (4)Isolation voltage, Viso: 5000Vrms; (5)Operating temperature, Topr: -20℃ to +80℃; (6)Storage temperature, Tstg: -55 to +125℃; (7)Soldering temperature, Tsol: 260℃.
Features
PC942 features: (1)Built-in base amplifier for inverter drive; (2)High power (IO1 : MAX. 0.5A (DC)) (IO2P : MAX. 2.0A (pulse)); (3)High isolation voltage (Viso : 5 000Vrms); (4)High speed response (tPHL,tPLH : MAX. 5ms).

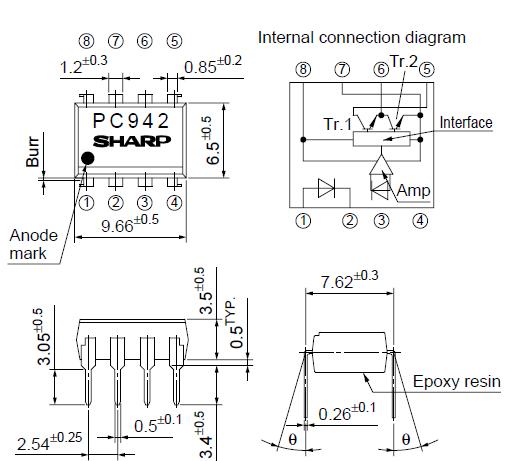

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PC942 |
|
PHOTOCOUPLER OPIC 8-DIP |
Data Sheet |
Negotiable |
|
||||||||||||
 |
PC942J00000F |
Sharp Microelectronics |
High Speed Optocouplers Photocoupler Inverter Control |
Data Sheet |
|
|
||||||||||||
