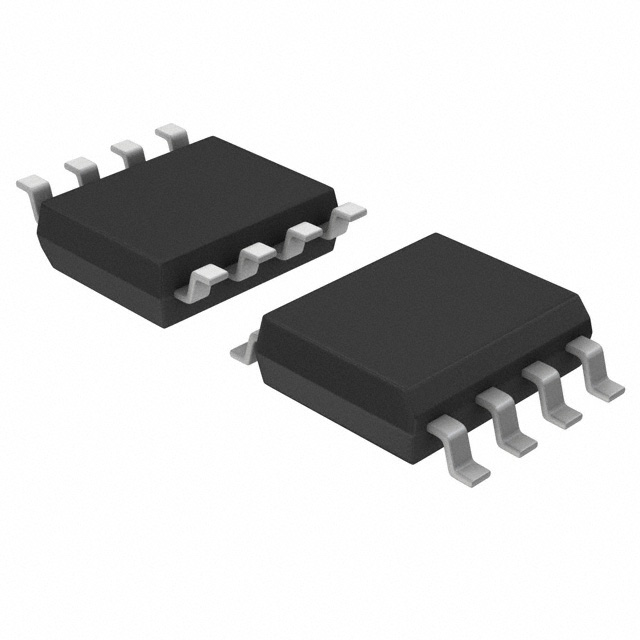

Product Summary
The NLAS4684MR2G is an advanced CMOS analog switch fabricated in Sub-micron silicon gate CMOS technology. The device is a dual Independent Single Pole Double Throw (SPDT) switch featuring Ultra-Low RON of 0.5Ω, for the Normally Closed (NC) switch, and 0.8Ω for the Normally Opened switch (NO) at 2.7 V. The NLAS4684MR2G also features guaranteed Break Before Make switching, assuring the switches never short the driver. The NLAS4684MR2G is ideal for Cell Phone, Speaker Switching, Power Switching, Modems, Automotive.
Parametrics
NLAS4684MR2G absolute maximum ratings: (1)VCC, Positive DC Supply Voltage: -0.5 to +7.0 V; (2)VIS, Analog Input Voltage (VNO, VNC, or VCOM): -0.5≦VIS≦VCC +0.5 V; (3)VIN, Digital Select Input Voltage: -0.5≤VI≤+7.0 V; (4)Ianl1, Continuous DC Current from COM to NC/NO: ±300 mA; (5)Ianl-pk, 1 Peak Current from COM to NC/NO, 10 duty cycle: ±500 mA; (6)Iclmp, Continuous DC Current into COM/NO/NC: ±300 mA; (7)Iclmp1, Peak Current into Input Clamp Diodes at COM/NC/NO: ±500 mA.
Features
NLAS4684MR2G features: (1)Ultra-Low RON, ＜0.5Ω at 2.7 V; (2)Threshold Adjusted to Function with 1.8 V Control at VCC = 2.7-3.3 V; (3)Single Supply Operation from 1.8-5.5 V; (4)Tiny 2 x 1.5 mm Bumped Die; (5)Low Crosstalk,＜83 dB at 100 kHz; (6)Full 0-VCC Signal Handling Capability; (7)High Isolation, -65 dB at 100 kHz; (8)Low Standby Current, ＜50 nA; (9)Low Distortion, ＜0.14% THD; (10)RON Flatness of 0.15; (11)Pin for Pin Replacement for MAX4684; (12)High Continuous Current Capability ±300 mA Through Each Switch; (13)Large Current Clamping Diodes at Analog Inputs ±300 mA Continuous Current Capability; (14)Pb-Free Packages are Available.

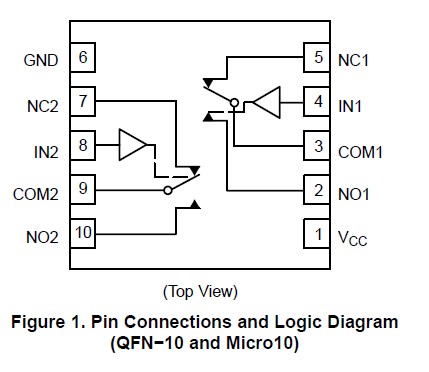

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NLAS4684MR2G |
ON Semiconductor |
Analog Switch ICs Dual SPDT 0.5ohm Sw. Low R(on) Ind. Temp |
Data Sheet |
|
|
||||||||||||
