MIC2941ABT

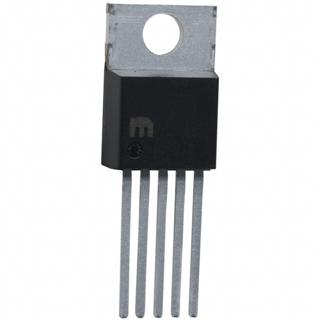

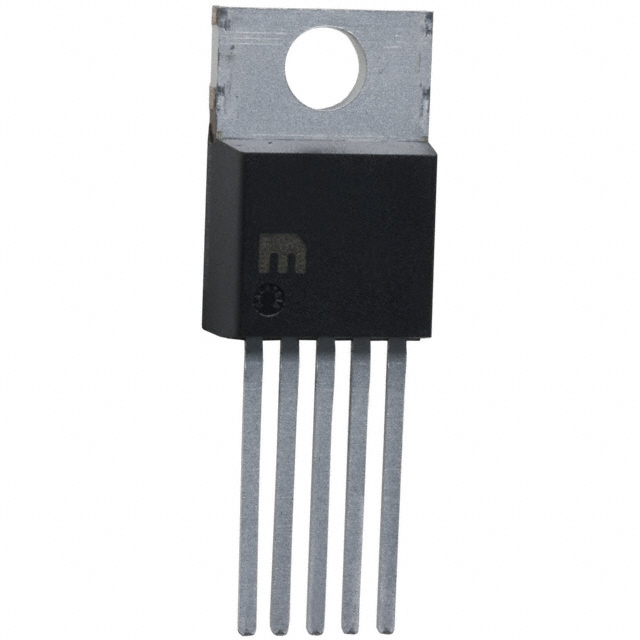

MIC2941ABT, Low-Dropout Voltage Regulator, TO-220, 26V, 70mA, Micrel Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: MIC2941ABT

Brand:: Micrel Semiconductor - Micrel | Pack: TO | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Anne's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:MIC2941ABT
US $1.00 - 2.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MIC2941ABT is a “bulletproof” efficient voltage regulator with very low dropout voltage (typically 40mV at light loads and 350mV at 1A), and low quiescent current (240μA typical). The quiescent current of the MIC2941ABT increases only slightly in dropout, thus prolonging battery life. Key of the MIC2941ABT features include protection against reversed battery, fold-back current limiting, and automotive “load dump” protection (60V positive transient). The applications of the MIC2941ABT include Battery powered equipment, Cellular telephones, Laptop, notebook, and palmtop computers, PCMCIA VCC and VPP regulation/switching, Bar code scanners, Automotive electronics, SMPS post-regulator/ DC-to-DC modules, Voltage reference, High efficiency linear power supplies.

Parametrics

MIC2941ABT absolute maximum ratings: (1)Power Dissipation: Internally Limited; (2)Lead Temperature (soldering, 5 sec.): 260℃; (3)Storage Temperature: -65℃ to +150℃; (4)Operating Junction Temperature: -40℃ to +125℃; (5)TO-220 (θJC): 2℃/W; (6)TO-263 (θJC): 2℃/W; (7)Input Supply Voltage: -20V to +60V; (8)Operating Input Supply Voltage: 2V to 26V; (9)Adjust Input Voltage: -1.5V to +26V; (10)Shutdown Input Voltage: -0.3V to +30V; (11)Error Comparator Output Voltage: -0.3V to +30V.

Features

MIC2941ABT features: (1)High output voltage accuracy; (2)Guaranteed 1.25A output; (3)Low quiescent current; (4)Low dropout voltage; (5)Extremely tight load and line regulation; (6)Very low temperature coefficient; (7)Current and thermal limiting; (8)Input can withstand -20V reverse battery and +60V positive transients; (9)Logic-controlled electronic shutdown; (10)Output programmable from 1.24V to 26V(MIC2941A); (11)Available in TO-220, TO-263, TO-220-5, and TO-263-5 packages.
