Product Summary
The MAX236EWG is a line driver/receiver intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications where ±12V is not available. The MAX236EWG is especially useful in battery-powered systems, since their low-power shutdown mode reduces power dissipation to less than 5μW. The MAX236EWG uses no external components and are recommended for applications where printed circuit board space is critical. The applications of the MAX236EWG include Portable Computers, Low-Power Modems, Interface Translation, Battery-Powered RS-232 Systems, Multidrop RS-232 Networks.
Parametrics
MAX236EWG absolute maximum ratings: (1)Supply Voltage (VCC): -0.3V to +6V; (2)V+: (VCC - 0.3V) to +14V; (3)V-: +0.3V to +14V; (4)Input Voltages, TIN: -0.3V to (VCC - 0.3V); RIN (Except MAX220): ±30V; RIN (MAX220): ±25V; TOUT (Except MAX220): ±15V; TOUT (MAX220): ±13.2V; (5)Output Voltages, TOUT: ±15V; ROUT: -0.3V to (VCC + 0.3V); (6)Driver/Receiver Output Short Circuited to GND: Continuous; (7)Continuous Power Dissipation (TA = +70℃); (8)16-Pin Plastic DIP (derate 10.53mW/℃ above +70℃): 842mW.
Features
MAX236EWG features: (1)For Low-Voltage, Integrated ESD Applications MAX3222E/MAX3232E/MAX3237E/MAX3241E/MAX3246E: +3.0V to +5.5V, Low-Power, Up to 1Mbps, True RS-232 Transceivers Using Four; (2)0.1μF External Capacitors (MAX3246E Available in a UCSP Package); (3)For Low-Cost Applications MAX221E: ±15kV ESD-Protected, +5V, 1μA, Single RS-232 Transceiver with AutoShutdown.

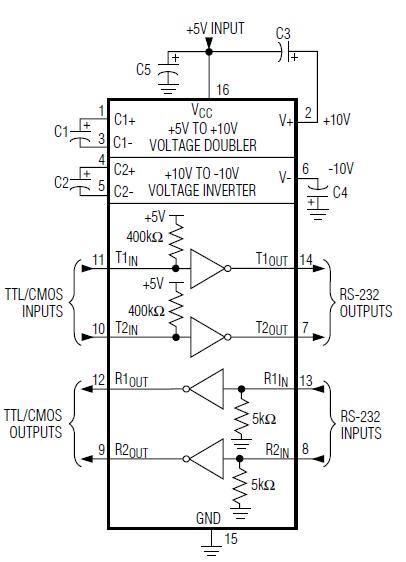

Diagrams

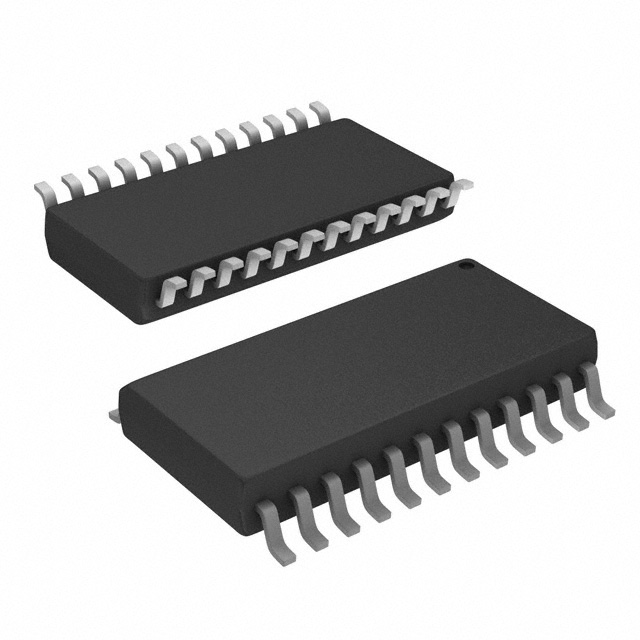

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX236EWG |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX236EWG+ |
Maxim Integrated Products |
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver |
Data Sheet |
|
|
||||||||||||
 |
MAX236EWG-T |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX236EWG+T |
Maxim Integrated Products |
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver |
Data Sheet |
|
|
||||||||||||
