Product Summary

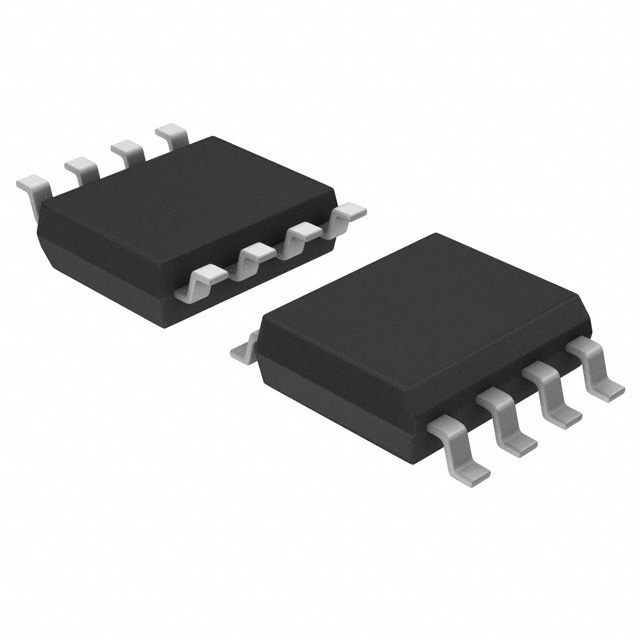

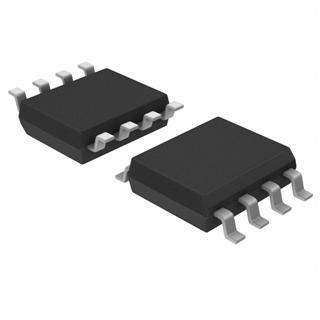

The LM311MX is a monolithic, low input current voltage comparator. The device is also designed to operate from dual or single supply voltage. The LM311MX series include LM311N and LM311MX, both of them are operated at the condition of 0 ~ +70℃. The package of LM311N is 8-DIP. The package of LM311MX is 8-SOP. The LM311MX is voltage comparators that have input currents nearly a thousand times lower than devices like the LM106 or LM710. The device is also designed to operate over a wider range of supply voltages: from standard -5V op amp supplies down to the single 5V supply used for IC logic.
Parametrics
LM311MX absolute Maximum Ratings: (1)Total Supply Voltage, VCC: 36 V; (2)Output to Negative Supply Voltage LM311, VO - VEE: 40 V; (3)Ground to Negative voltage, VEE: -30 V; (4)Differential Input Voltage, VI(DIFF): 30 V; (5)Input Voltage, VI: -5 V; (6)Output Short Circuit Duration: 10 sec; (7)Power Dissipation, PD: 500 mW; (8)Operating Temperature Range, TOPR: 0 to +70℃; (9)Storage Temperature Range, TSTG: - 65 to +150℃.
Features
LM311MX features: (1)Low input bias current: 250nA (Max); (2)Low input offset current: 50nA (Max); (3)Differential Input Voltage: 0V; (4)Power supply voltage: single 5.0V supply to -5V; (5)Offset voltage null capability; (6)Strobe capability.

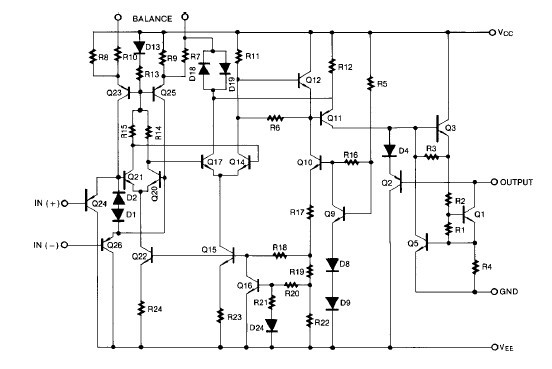

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM311MX |
National Semiconductor (TI) |
Comparator ICs |
Data Sheet |
|
|
||||||||||||
|
LM311MX/NOPB |
National Semiconductor (TI) |
Comparator ICs VOLTAGE COMPARATOR |
Data Sheet |
|
|
||||||||||||
|
LM311MX_Q |
Fairchild Semiconductor |
Comparator ICs Single Comparator |
Data Sheet |
Negotiable |
|
||||||||||||
